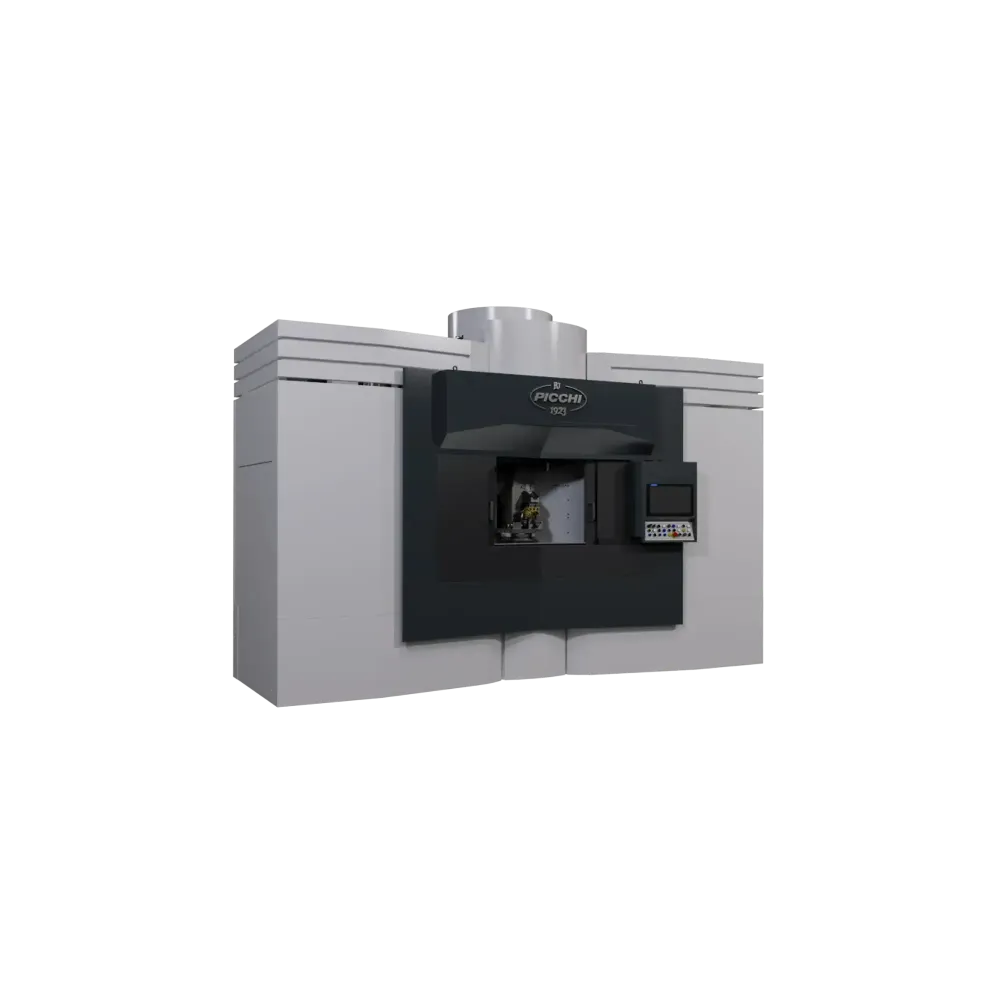

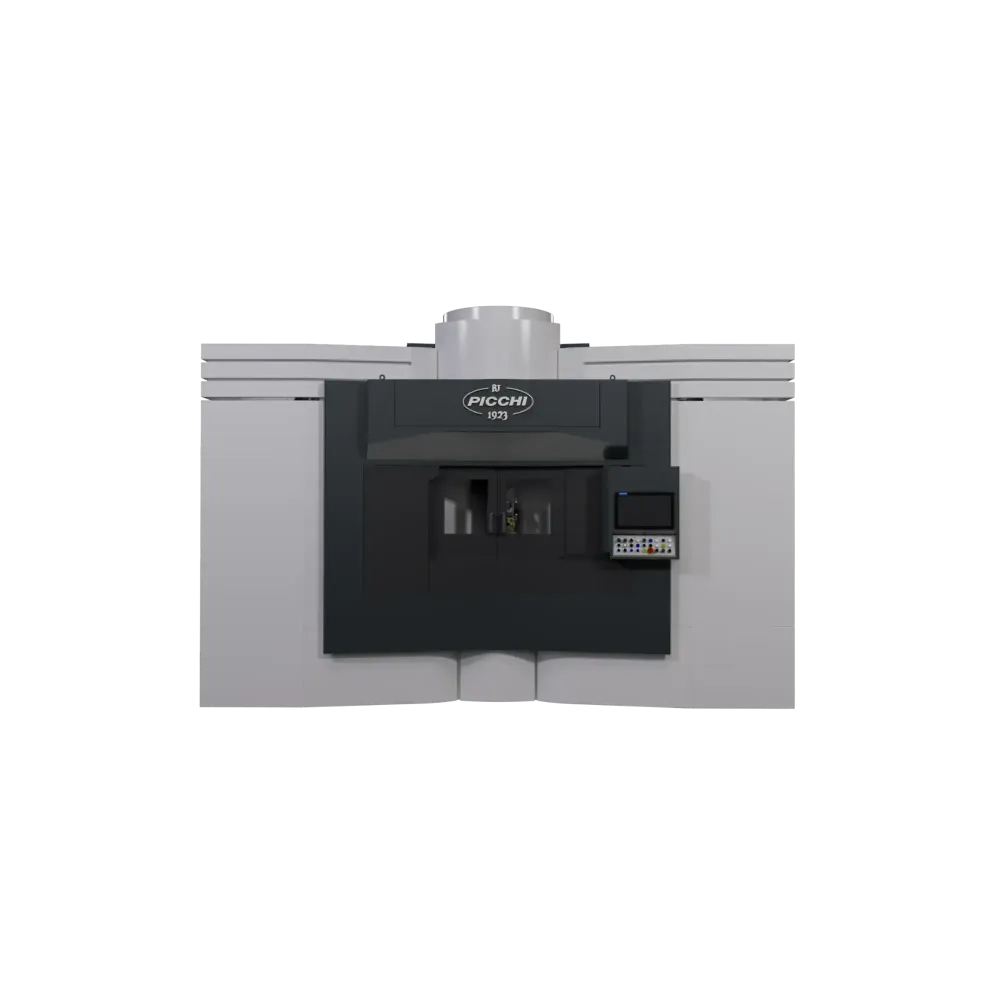

Chrono

Multispindle machining center

Multispindle machining center

The reduction of volumes and production batches, the ever-increasing complexity of pieces and in any case the request to increase productivity has led us to propose the Chrono Multi-spindle Center which responds to and solves these production needs.

The Chrono Multi-Spindle Machining Center can be configured with 3 or 4 Machining Centers connected to each other by 4 or 5 stations driven by torque motors. One station is therefore available for loading and unloading operations in masked time. The Machining Centers configuration is available with 4 or 5 axes.

The main characteristics

Version with 4 or 5 axes;
Multispindle machining center with 3 or 4 machining centers linked to each other by 4 or 5 stations, which are driven by Torque motors;
A station is available for the load and unload operations in masked time;
Machining of different pieces for each station or of one piece with split cycle between the different stations.
In option, a Recess Group integrated in the spindle of a machining center with Capto C4 connection;
The characteristics of the offered spindles and the analysis of the work conditions allow the decision, which is able to optimize the machining of the materials;
Dynamics of linear axes with speed of 60 m/1’ and dynamics of rotary axes optimized;
Ability of the tools magazines with standard solutions from 54 to 120 tools. There is the possibility to apply external magazines also managed by the machining center in work;
Temperature control in order to guarantee dimensional stability and maximum precisions;
High pressure coolant through the spindles also with the presence of the recess group;
Devices, equipment and accessibility learnt to accelerate the phases of lots change;
“User Friendly” Picchi Interface projected to make easy and immediate the use of the machine;
Service: Systems of Remote maintenance and / or Tele diagnosis and / or remote control systems;
“Industry 4.0”: Interconnection to the IT systems, monitoring of the work conditions and of the process parameters, adaptive control to the drifts of the process, etc.
