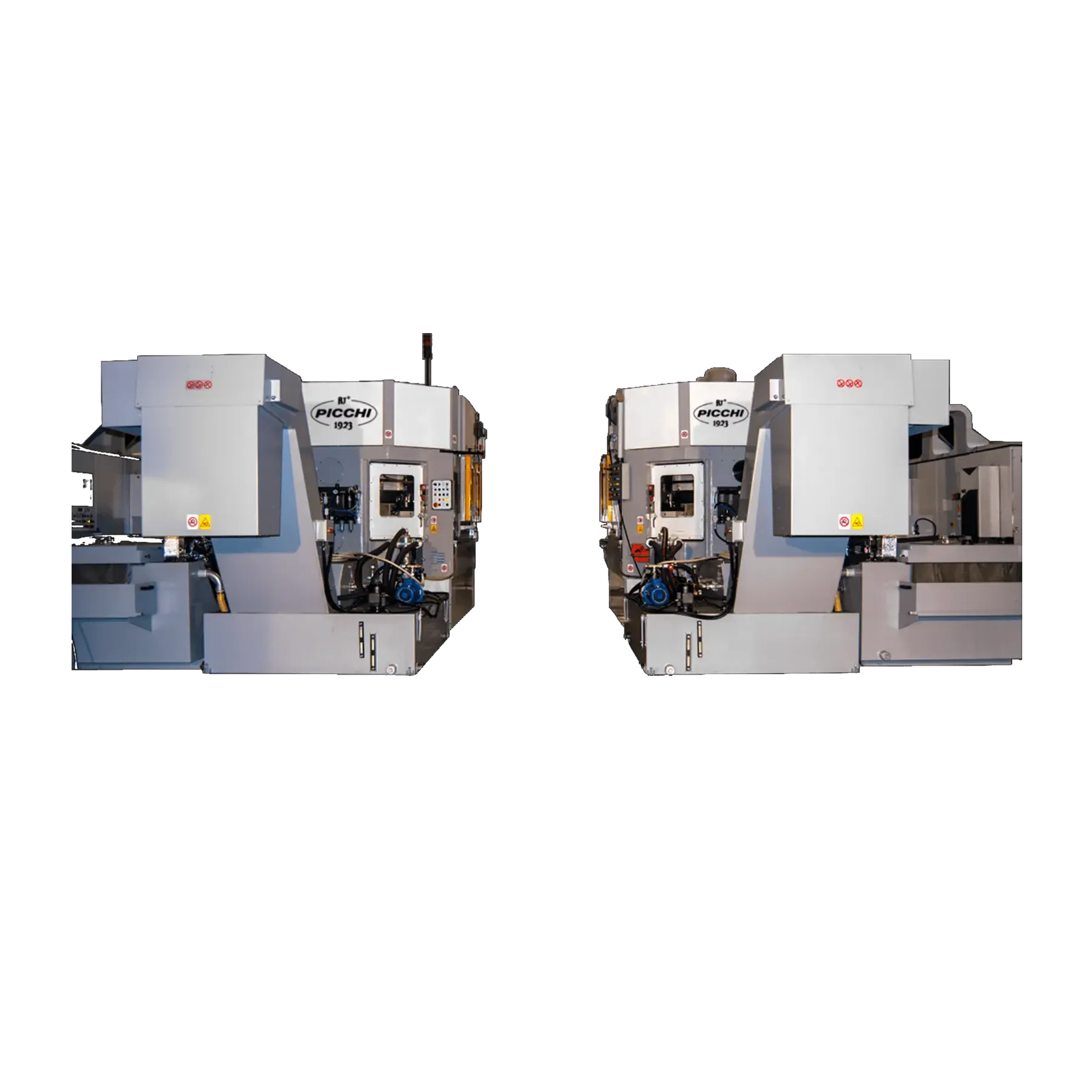

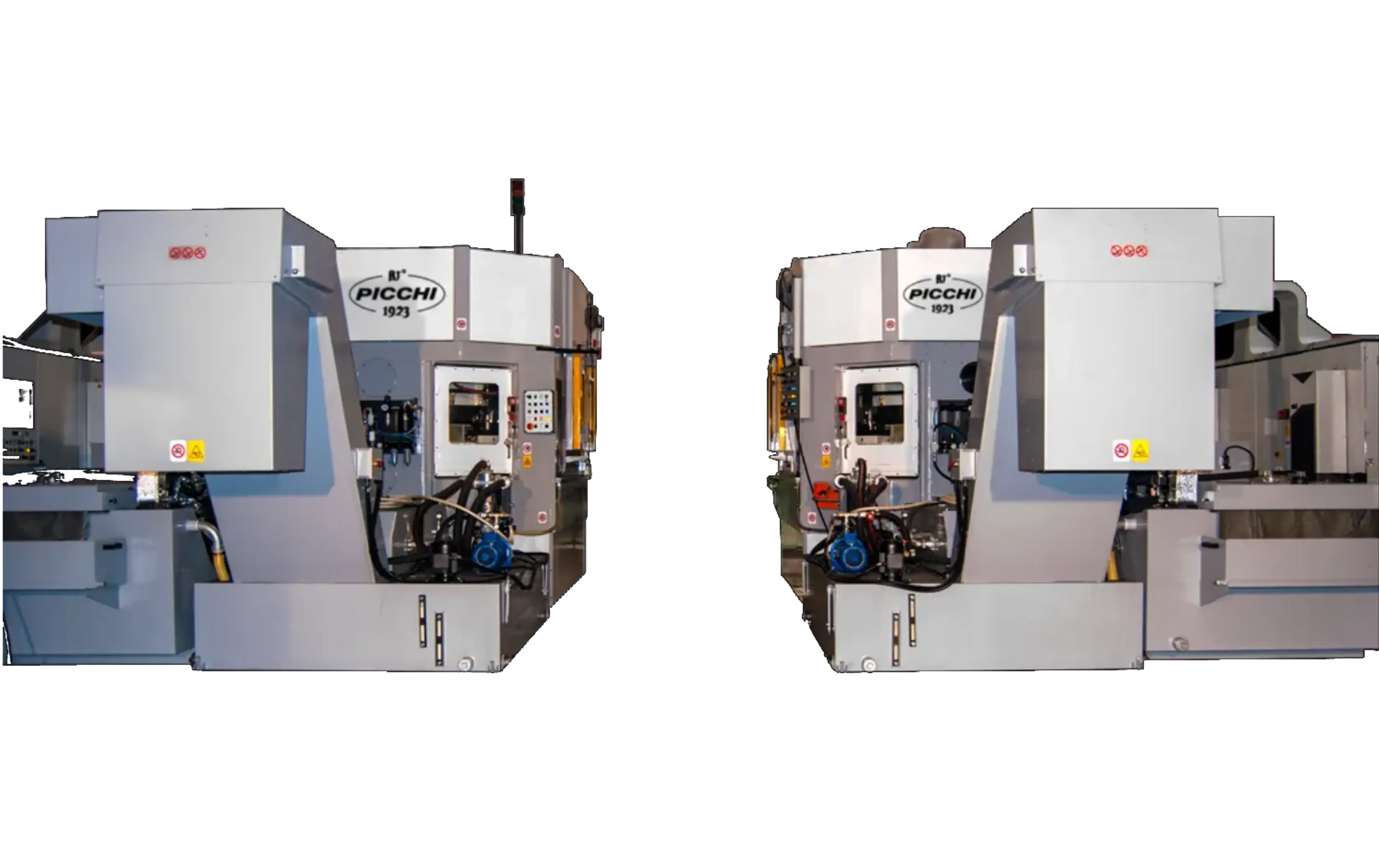

TWIN T10-U8

Combyax

Flexible like a 3-axes machining center but productive like a 24

Flexible cell extremely compact to produce details to work with 3-axes numerical control machining center which need 2 positioning.

Work space: 300x300 mm.

In the flexible cell there are 16 independent numerical control “machines”, which have a high productivity comparable to 24, thanks to very reduced downtime:

Tool change time: null;
Piece change time nonexistent as there are independent stations both for the load and the unload.

The flexibility and the versatility of the machinery make it usable in different sectors such as: automotive, oil-hydraulics, etc.

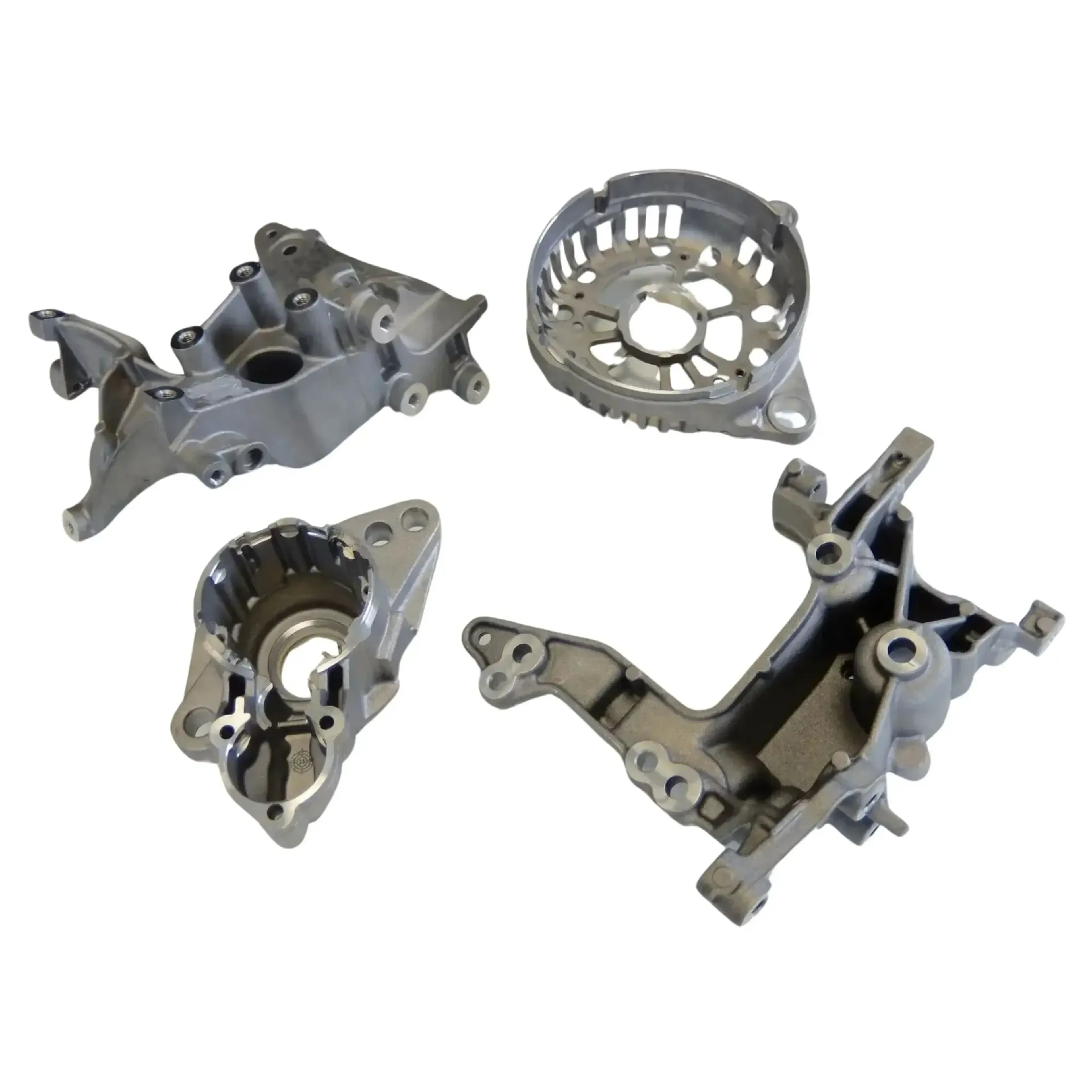

picchi-combyax-twin-t10-u8-particolari-delle-macchine

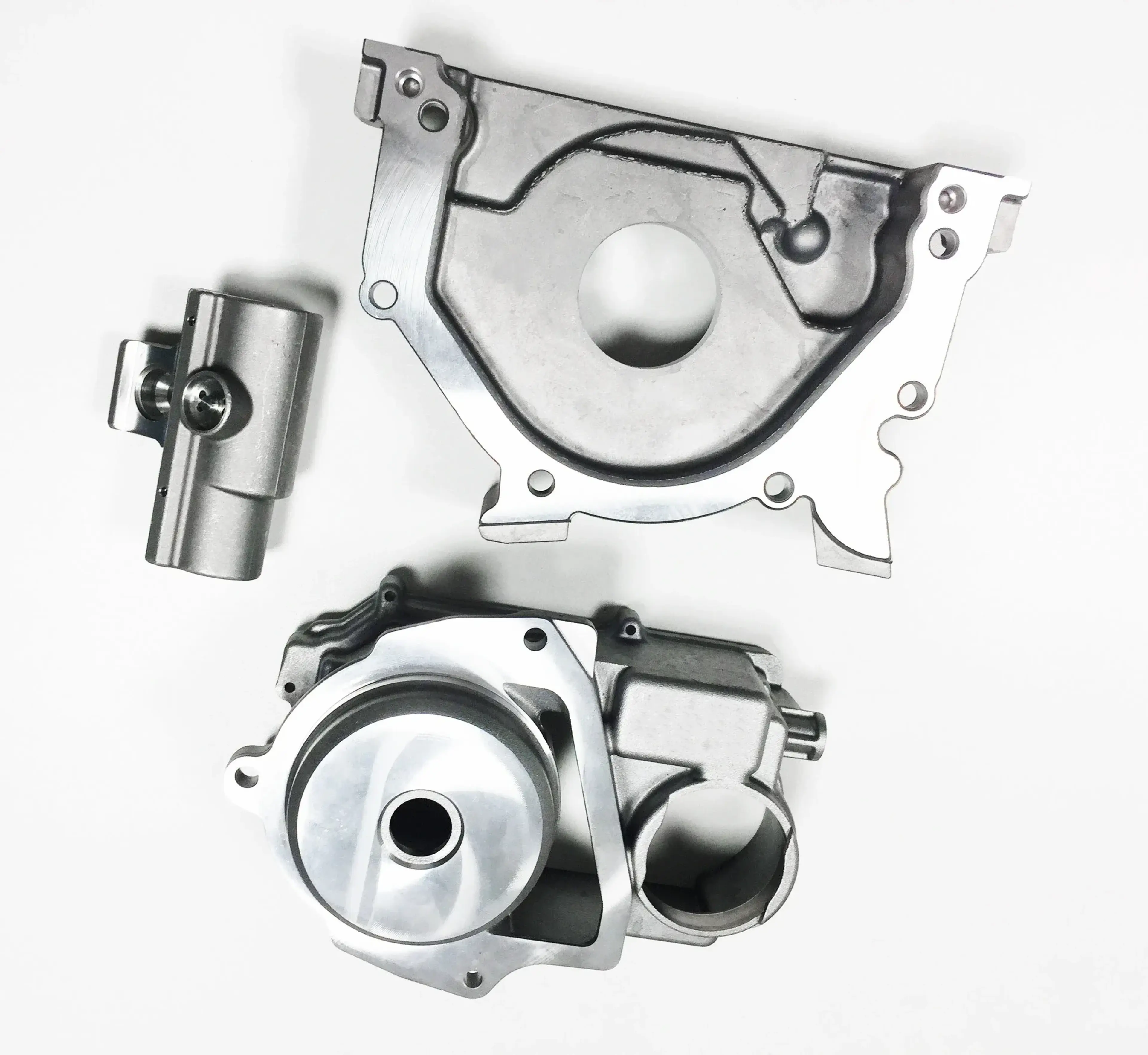

picchi-combyax-twin-t10-u8-pezzo-delle-macchine

Quick Setup and Construction Solutions

The production island can be re-tooled in 60 minutes, thanks to the complete option of rapid re-tooling.

Hydrostatic Support and Thermoregulation

In case of use of polycrystalline tools or natural diamond tools for light alloys it is possible to ask for the hydrostatic sustenance option.

Extremely productive also thanks to the rotation of the table through Torque Motor and position control by encoder.

The machine is equipped with probes to measure the external room temperature, and the temperature inside the machine for the management of the thermoregulation, in order to increase the thermal stability of the machine.

Technical features

Download the technical datasheet

N. 3-axes machining centers model CLME300X300X125/Hsk63c: 16;
Spindle nose connection: HSK63;
Work space: 300x300 mm;
Spindles rotation speed 6000 (12000) revolutions per minute;
Tool change time: null;
Piece change time: masked;
Z axis acceleration: 2G;
X,Y axis acceleration: 1,6 G;
Coolant through the tools at 80 bar;
Main rotary table driven by torque motor; positioning time 1,2;
Typical cycle time for light alloys details: 6 seconds;
Load and unload automation on request;
Tele-Service: systems of remote maintenance, tele diagnosis and remote control systems;
Industry 4.0: predisposition for the interconnection to the IT systems, monitoring of the work conditions and of the process parameters, adaptive control to the drifts of the process, etc.
