Transfer Loading 1.5 Seconds

Automations

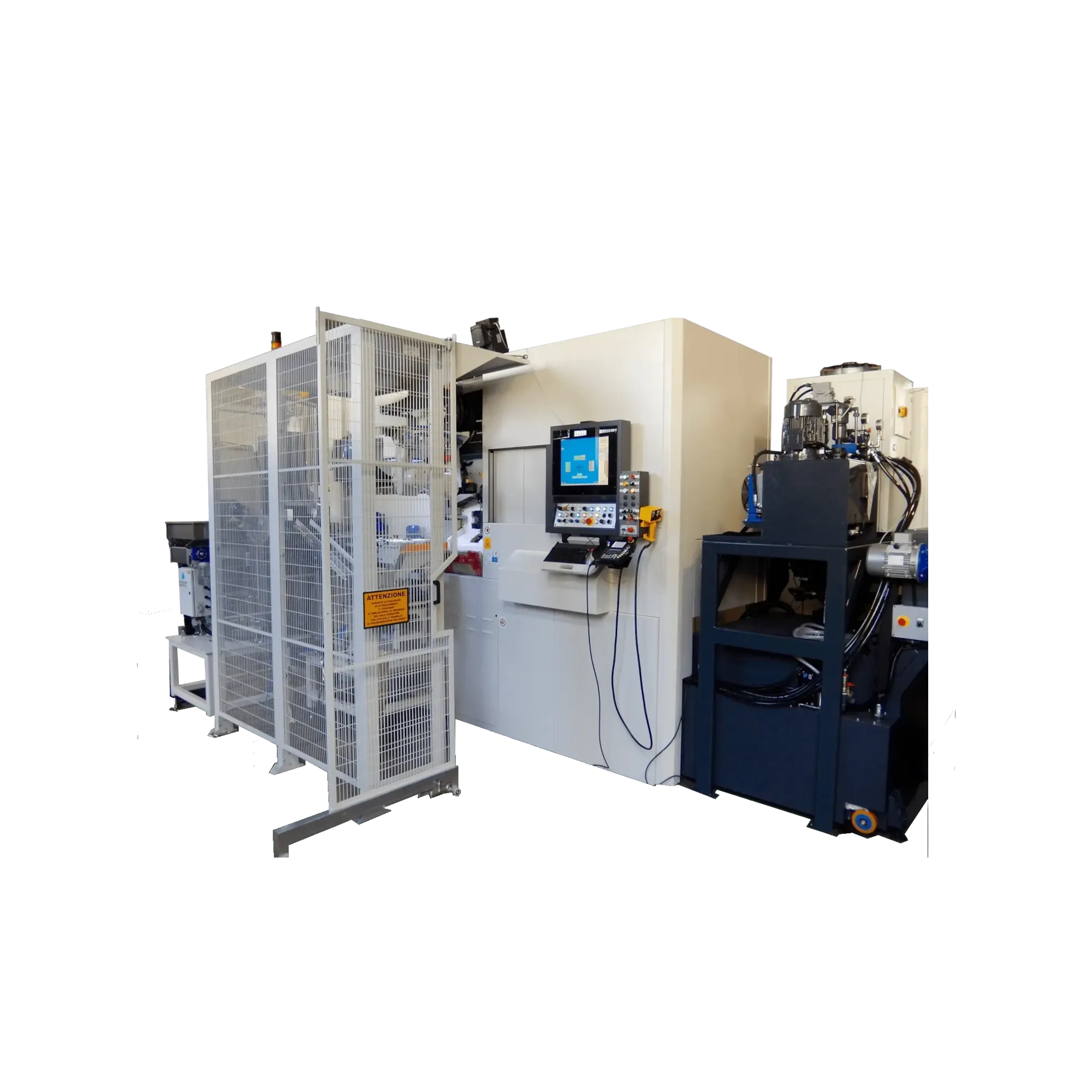

Turnkey transfer island with horizontal axis

Unparalleled results are achieved through integral design:

Cycle times of less than 1.5 seconds;
Single operator panel to manage the transfer machine, robot, and vision system;
Complete teleservice for the entire system;
Simple and fast tooling phase (start up);
Complete software with cycles for sampling, filling, nok, etc;
Minimum footprint on the ground;
Wide accessibility to work areas during startup and retooling phases;
Feeding and unloading from belt assisted by vision system;
Simple and safe workpiece clamping control.

High performance transfer

An example of high productivity and low operating costs is our Transfer equipped with ten stations and fifteen work units, arranged on three sides: right, left and radial, designed for fittings and small parts with a maximum size of Gas 1/2 inch. and with minimum cycle times of 1.5 sec.

The Table, pressurized and driven by a Torque Motor (Direct-Drive) with position control by Encoder, guarantees high reliability and rotation speed (0.25 seconds), a fundamental element to guarantee very short cycle times. The modular construction allows us to consolidate experience, standardize and make the fundamental components of the machine increasingly reliable in the long term.

Technical features

Download the technical datasheet

Cycle time less than 1.5 seconds;
Equipment efficiency > 95%;
Equipment changeover time less than 15 minutes;
Single operator panel for machine and automation;
Vision system with backlit belt;
Scrap recovery belt;
Workpiece closure control;
Unloading pick and place;
Case tipper elevator;
Sampling cycle management software;
NOK cycle management software;
Filling cycle management software.
