The clamping system is integrated in the B-axis, driven by a torque motor, controlled in position by an absolute Encoder and locked with hydraulic brake. The resolution of the axis is 0.001G.
Once the piece is clamped, the clamp rotates thanks to the B-axis and allows accessibility to the ways that need to be machined in a single table turn.

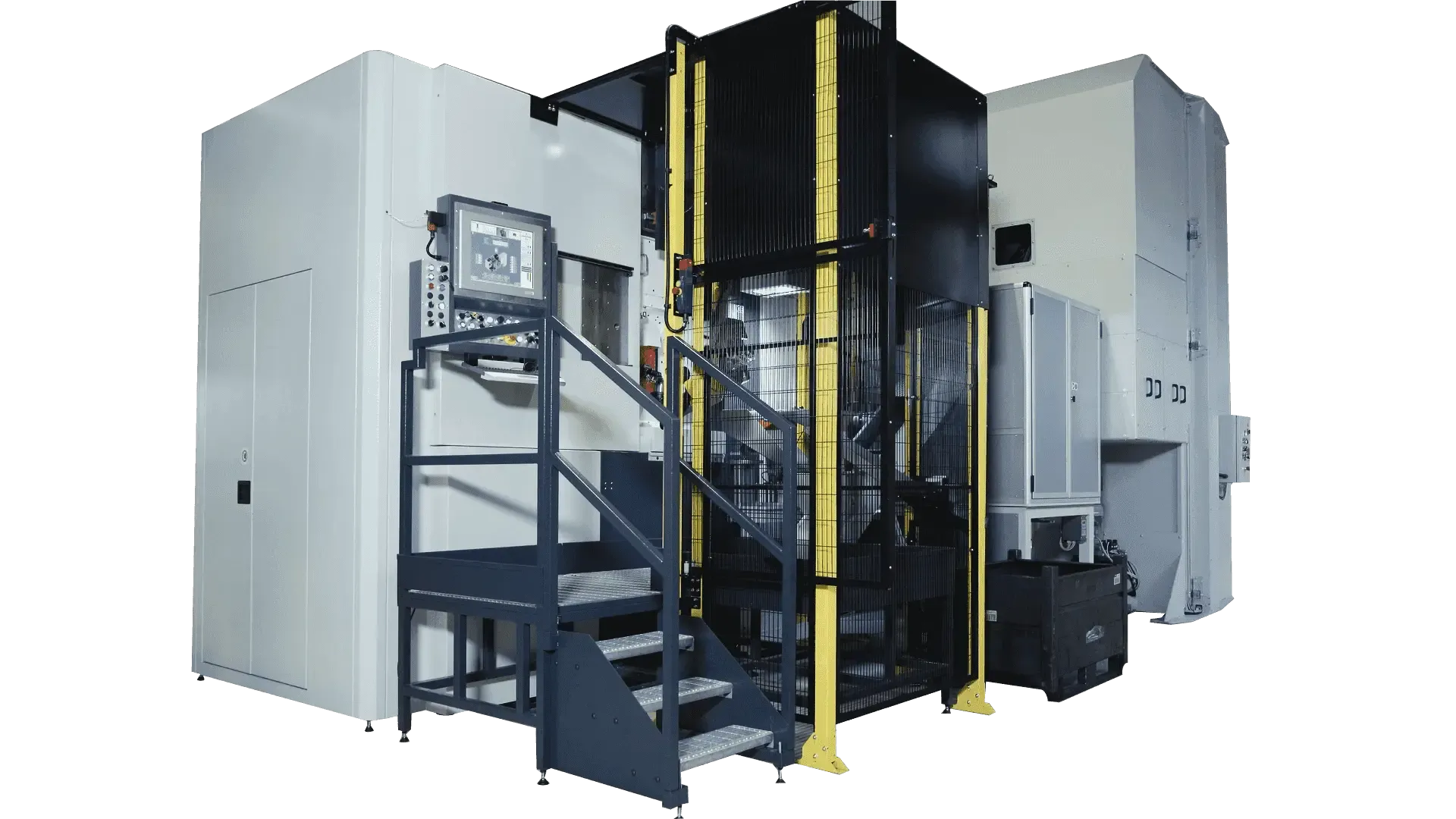

MACHINE BED: monolithic structure particularly rigid. Designed with FEM (Finite Element methods).

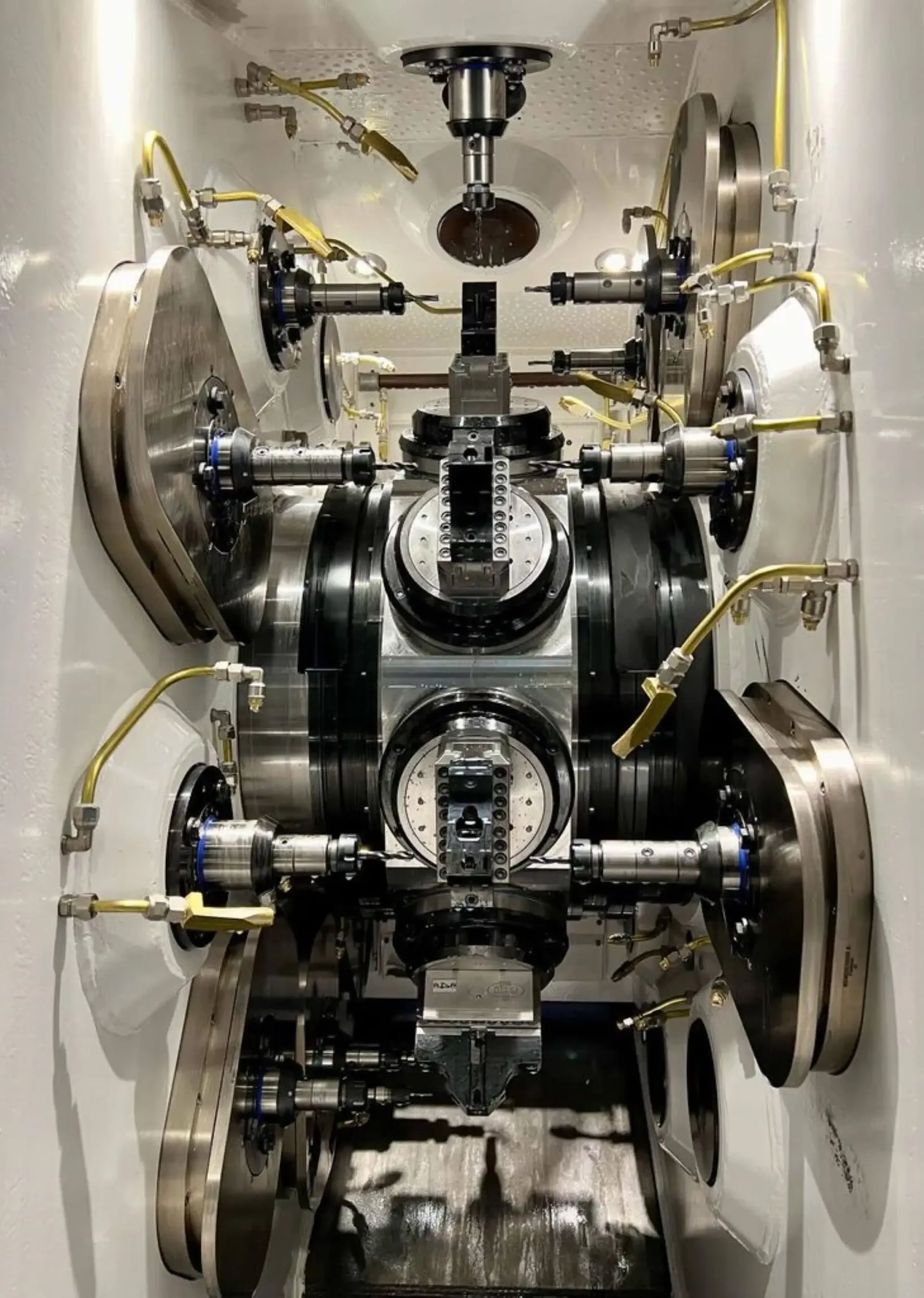

ROTARY TABLE: horizontal axis with 9 stations, rotary system driven by Brushless Servomotor, locked with Hirth system and position control by directly connected encoder.
All mechanical components are pressurized to ensure protection from machining debris.

OPERATING UNITS:

• 12 operating units with 100mm stroke, (10 drilling/boring units UFE100/00 of which 6 are positioned on 1-axis carriages, 2 drilling/boring units UFME100/00 also positioned on 1-axis carriages);
• The “HP” option ensures maximum rigidity, precision and performance;
• The “Long Life” option keeps the performances unvaried during the time, as sleeve ware is avoid; the units are equipped with pressurization plant in order to avoid that the machining chips or the coolant come into contact with the bearings and the spindle;
• Spindle connection ABS40;
• Driven by recirculating ball screw and Brushless motor.

• Table rotation axis: horizontal;
• Number of stations: 10 stations;
• Clamping system: hydraulically actuated self-centering vises;
• Table rotation time: 0.2 sec;
• 15 operating units with a stroke of 160mm (7 drilling/boring units UFE 160/40, 5 drilling/tapping units UFME 160/40, 3 units with electronic recessing UFME 160/Re);
• Spindle nose taper: ISO 40;
• Most significant options:
  High Performance "HP";
  "Long Life";
  Thermal regulation.
• Axis drive system: preloaded precision ball screws driven by Brushless motors;
• 3 electronic recessing units;
• CNC system: Siemens 840D;
• Remote assistance;
• Automation: anthropomorphic robot with vision system.
