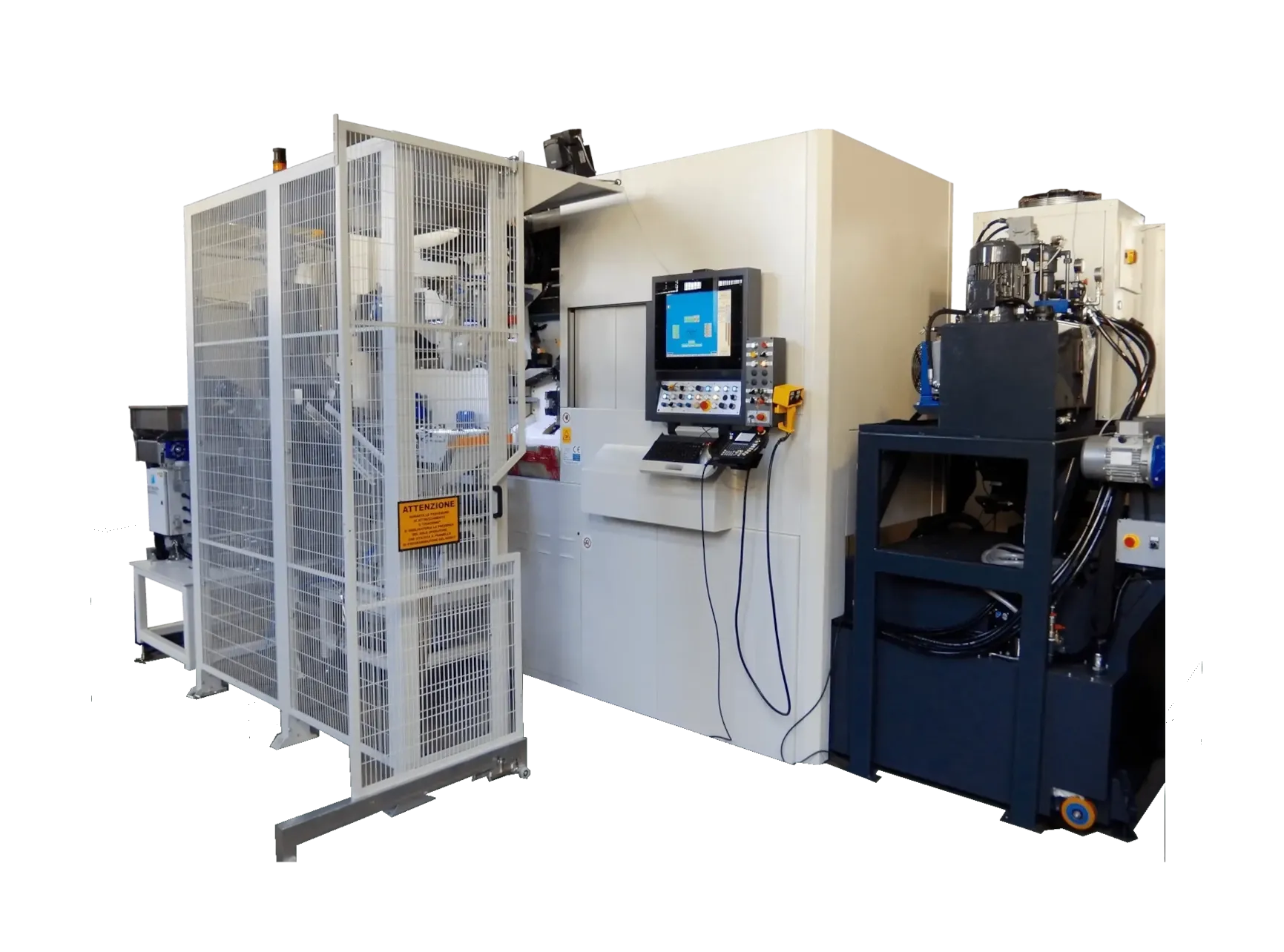

MACHINE BED: monolithic structure particularly rigid. Designed with FEM (Finite Element methods).

ROTARY TABLE: horizontal axis with 8 stations, rotary system driven by torque motor and position control by directly connected Encoder. All the mechanical components are pressurized in order to guarantee the protection from machining residues. Table locking through hydraulic brake.

OPERATING UNITS:

• 12 operating units with 125 mm stroke (6 drilling/boring operating units UFE 125/40, 3 drilling/tapping operating units UFME 125/40 and 3 operating units with electronic recess UFME 125/Re);
• The “HP” option guarantees the maximum rigidity, precision and performance;
• The “Long Life” option keeps the performances unvaried during the time, as sleeve ware is avoid; the units are equipped with pressurization plant in order to avoid that the machining chips or the coolant come into contact with the bearings and the spindle;
• Spindle connection ISO40 with rapid tools change;
• Driven by recirculating ball screw and Brushless Motor;
• Moreover, 3 operating units are equipped with electronic recess head, pressurized and lubricated and its horizontal movement is on inclined flats.

• Table rotation axis: horizontal;
• Number of stations: 8 stations;
• Clamping system: self-centering clamps with hydraulic drive;
• Table rotation time: 0.2;
• 15 operating units with 125mm stroke, (6 drilling/boring operating units UFE 125/40, 3 drilling/tapping operating units UFME 125/40 and 3 operating units with electronic recess UFME 125/Re);
• Nose spindles connection: ISO 40;
• Most significant options:
  "HP" High Performance;
  "Long Life";
  Temperature control.
• Axis drive through recirculating ball screw, driven by Brushless motor;
• 3 electronic recesses;
• Numerical control: Siemens 840D CNC;
• Remote assistance;
• Automation: optionally anthropomorphic robot with vision system.
