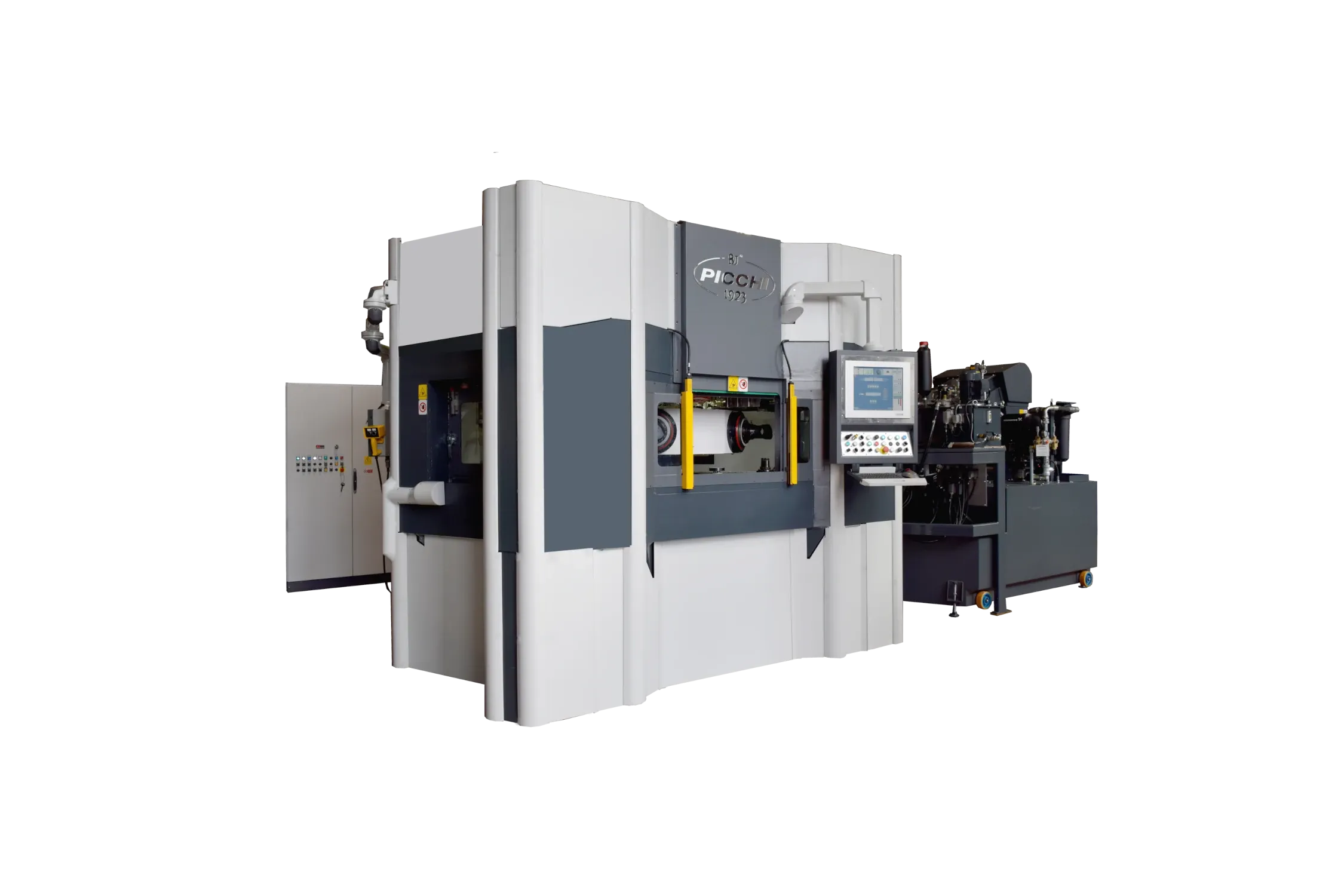

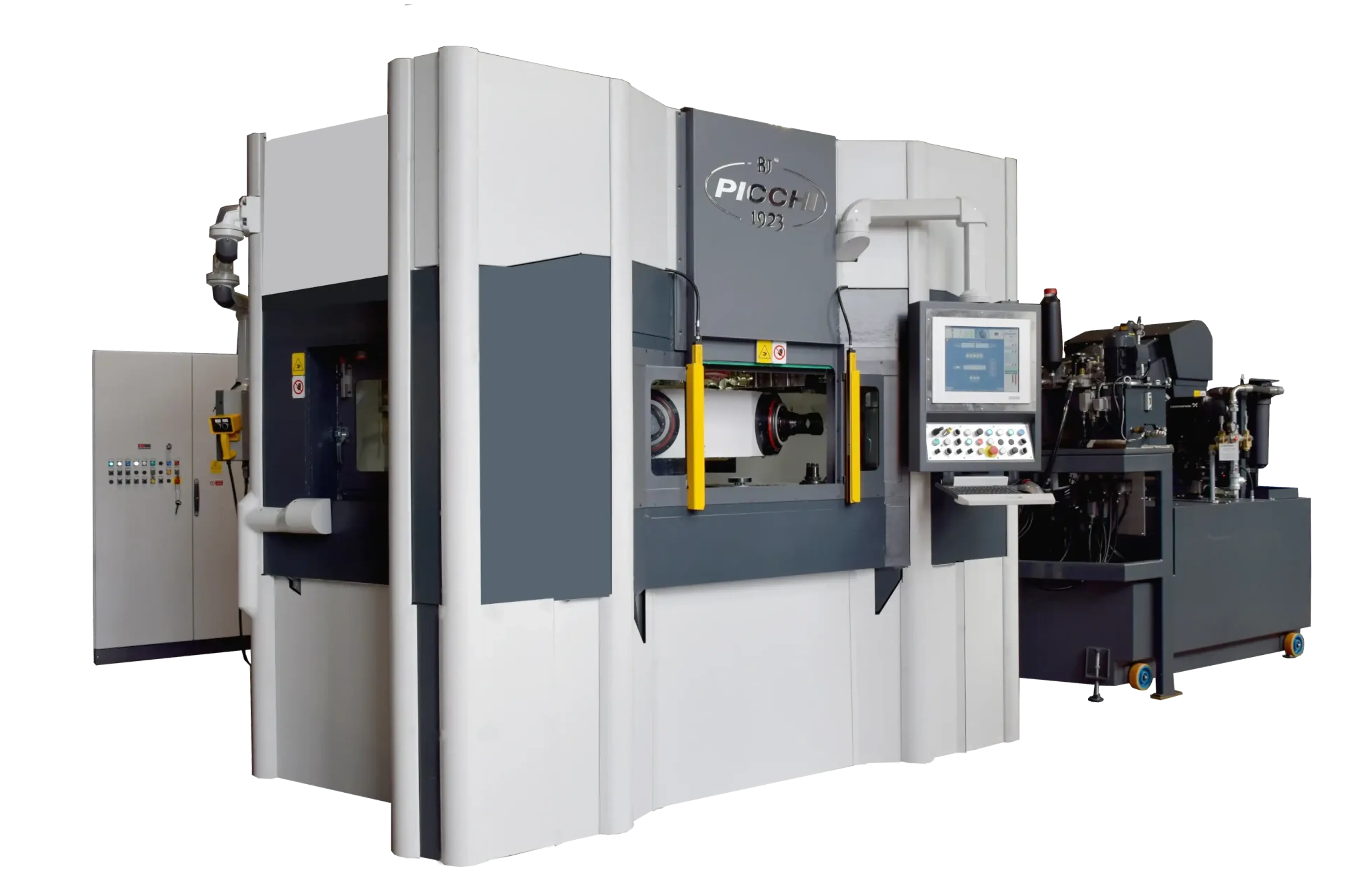

Extremely compact flexible cell able to produce items worked with 3 or 4-Axes numerical control machining centers. A typical use is for Faucets in CW511L material.

The pieces can be worked on the 5 faces.
The flexibility and the versatility of the machinery make it usable in different sectors such as: automotive, hydrosanitary, thermotechnic, oil-hydraulics etc.

• N. 6 stations;
• Main rotary table with Hirth clamping;
• B-Axis rotary vices, which are controlled in continuous and are driven by a torque motor;
• N. 9 double-spindle machining centers for a total of 18 spindles;
• The “HP” option guarantees the maximum rigidity, precision and performances;
• The “Long Life” option keeps the performances unvaried over the time, as sleeve ware is avoid; the units are equipped with pressurization plant in order to avoid that the machining chips or the coolant come into contact with the bearings and the spindle;
• Spindle nose connection: HSk63;
• N. 2 electronic recesses;
• N. controlled axes: 51;
• Differential thermoregulation and settable preheat cycle;
• Passage of the coolant through the spindles at 15 bar/20 L/1’;
• Automatic load system with robot;
• Tele-service: system of remote maintenance, tele diagnosis and remote control systems;
• Industry 4.0: interconnection with the IT systems, monitoring of the work conditions and of the process parameters, adaptive control of the process drifts, etc.
