T16-U27

Combyax

For the machining of 6 or more directions. Extremely compact, it ensures high precision and excellent productivity

Extremely flexible Transfer Machine with various machining centers, designed for the production of complex parts that need to be worked on all faces.

The flexibility and versatility of the machinery, make it usable in various application sectors. It is particularly suitable for the production of parts in the gas sector, household appliance and valves.

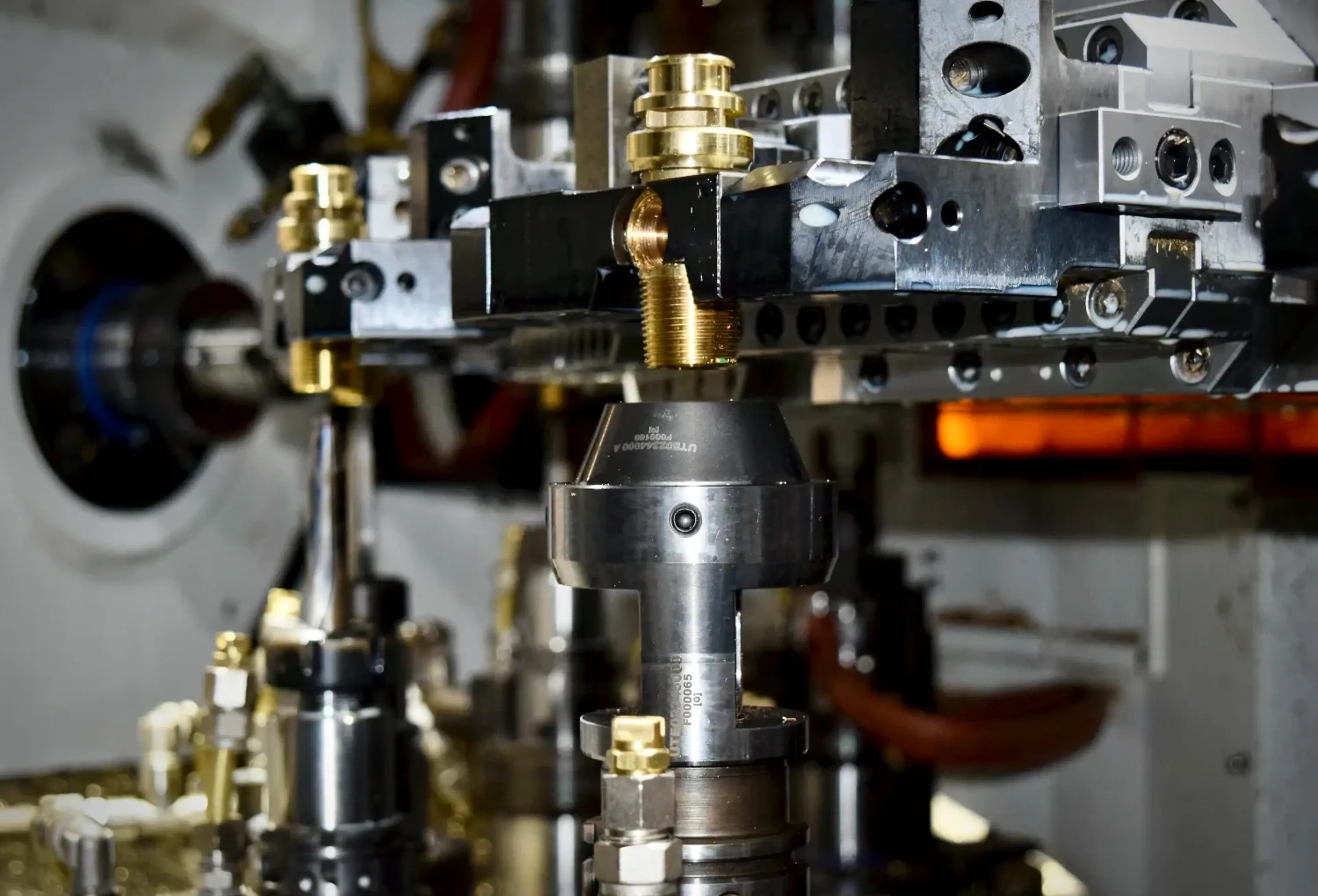

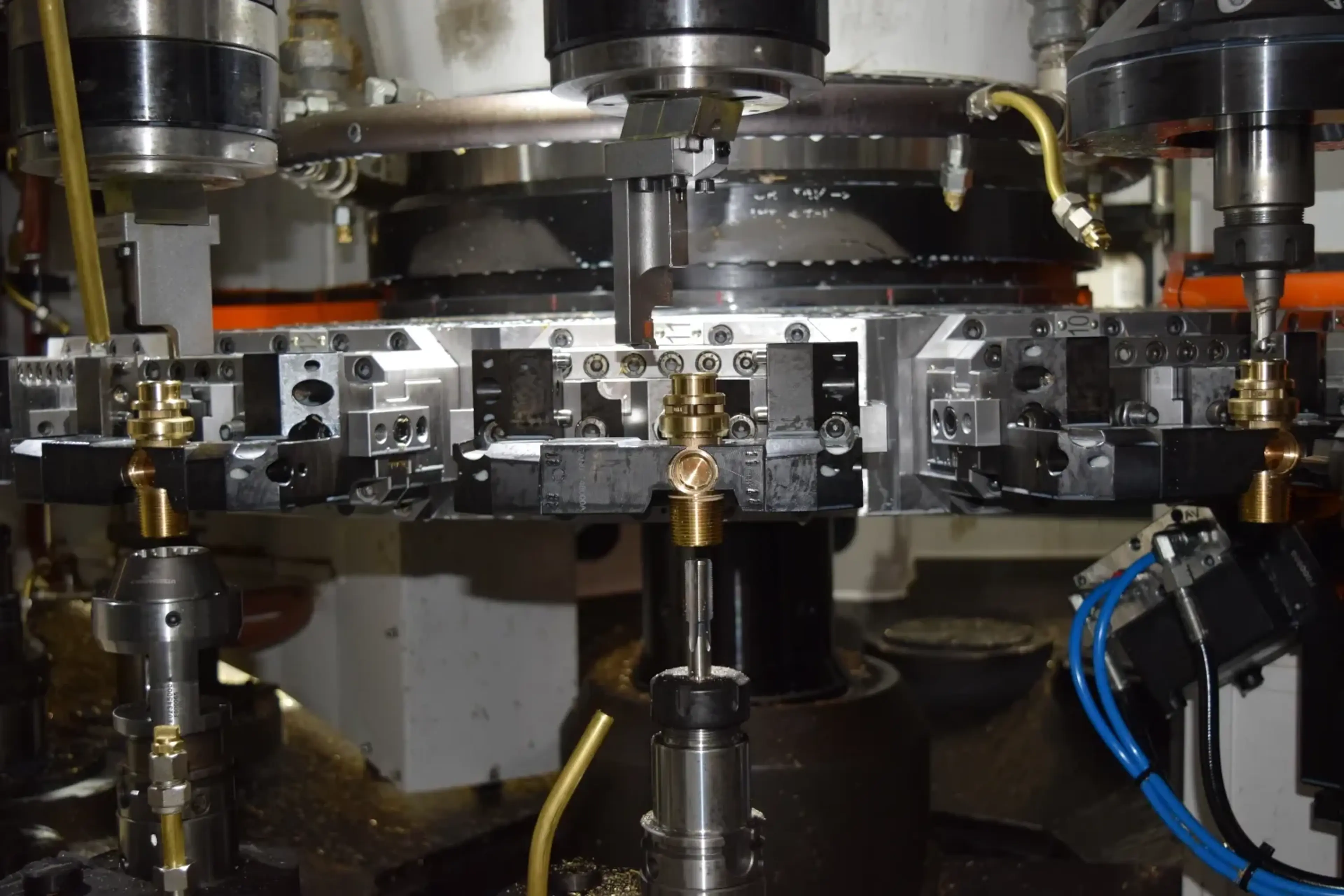

picchi-combyax-t16-u27-componente-interno

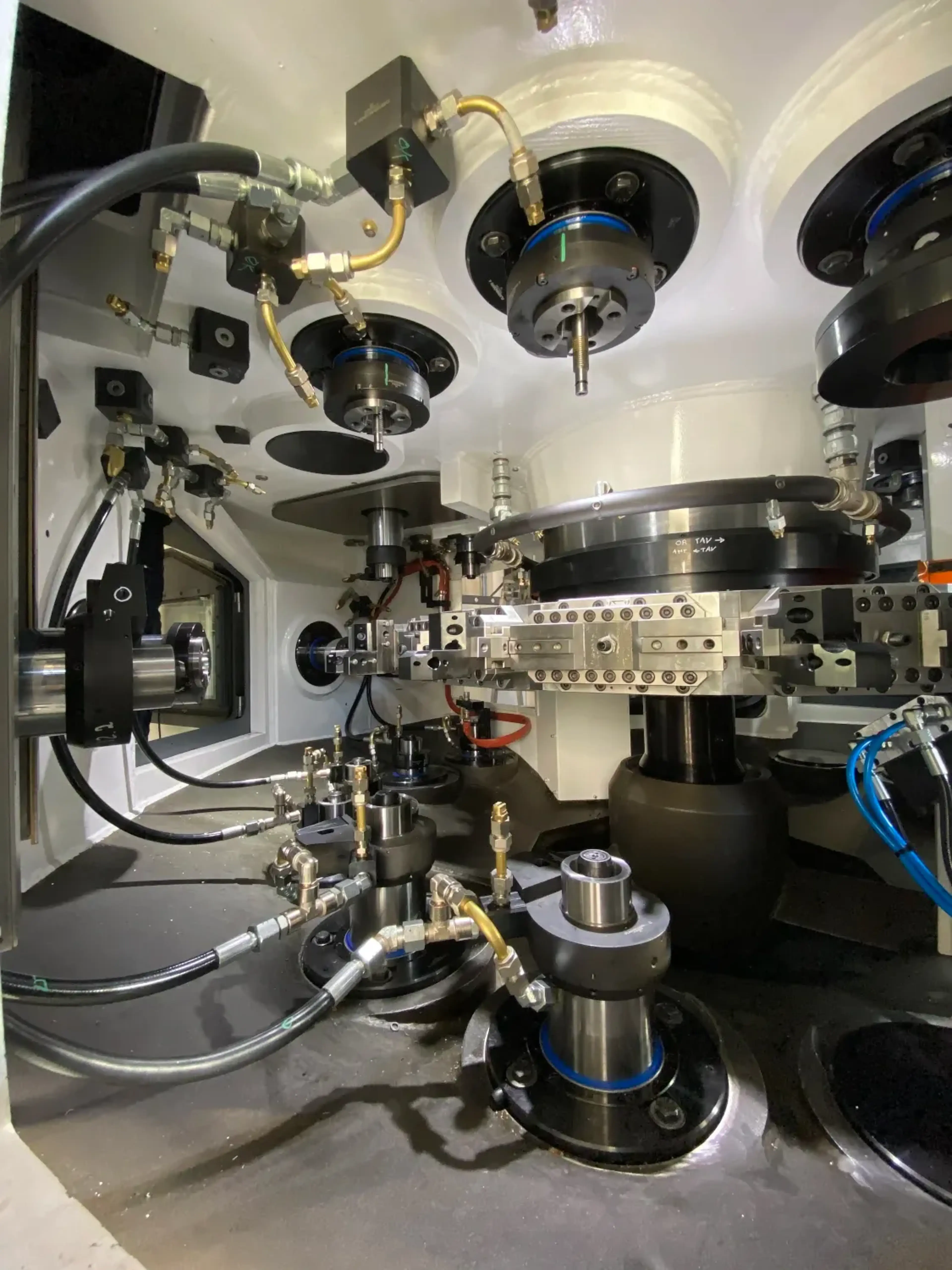

picchi-combyax-t16-u27-componentistica-interna

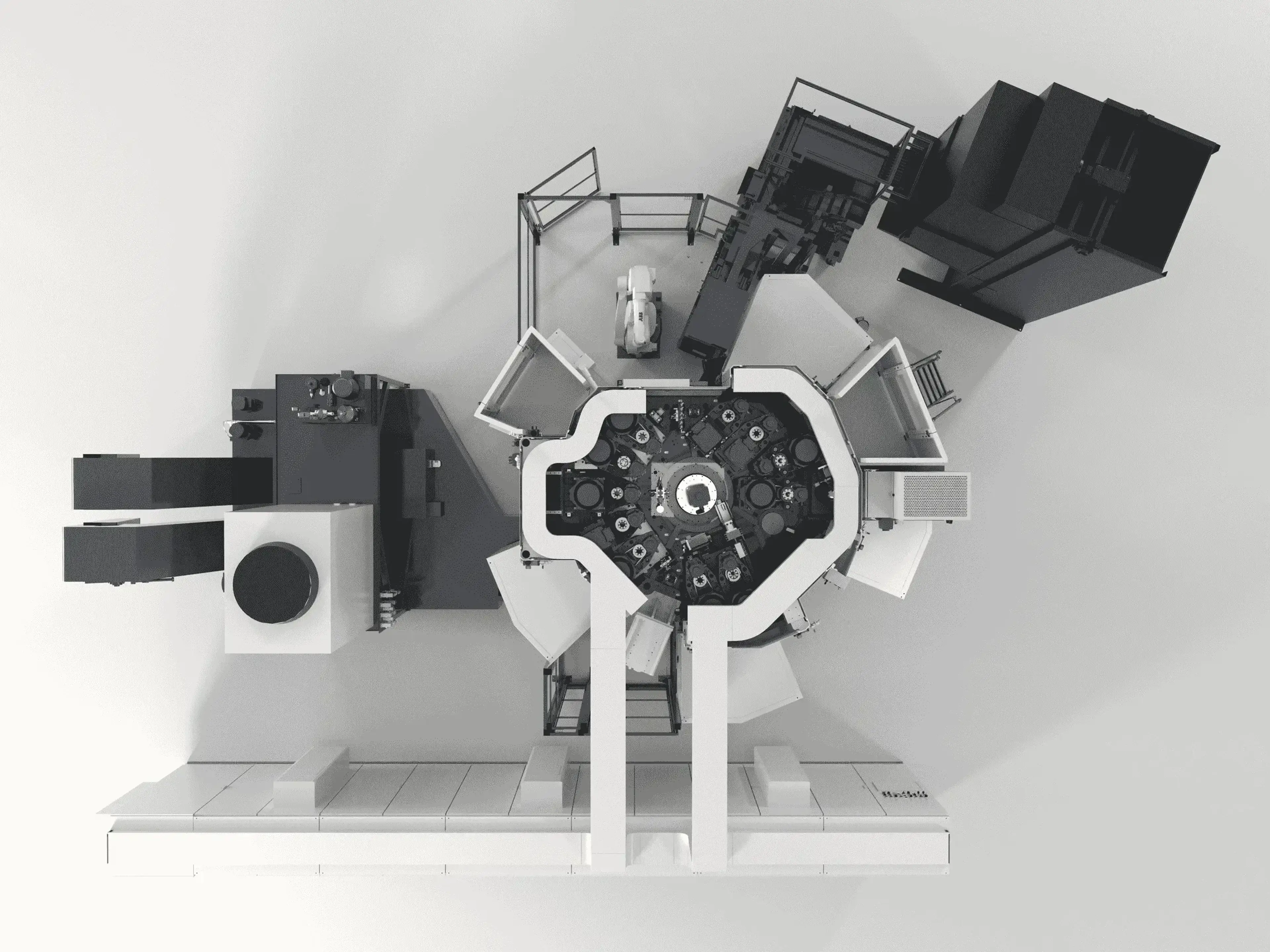

picchi-combyax-t16-u27-macchina-da-sopra

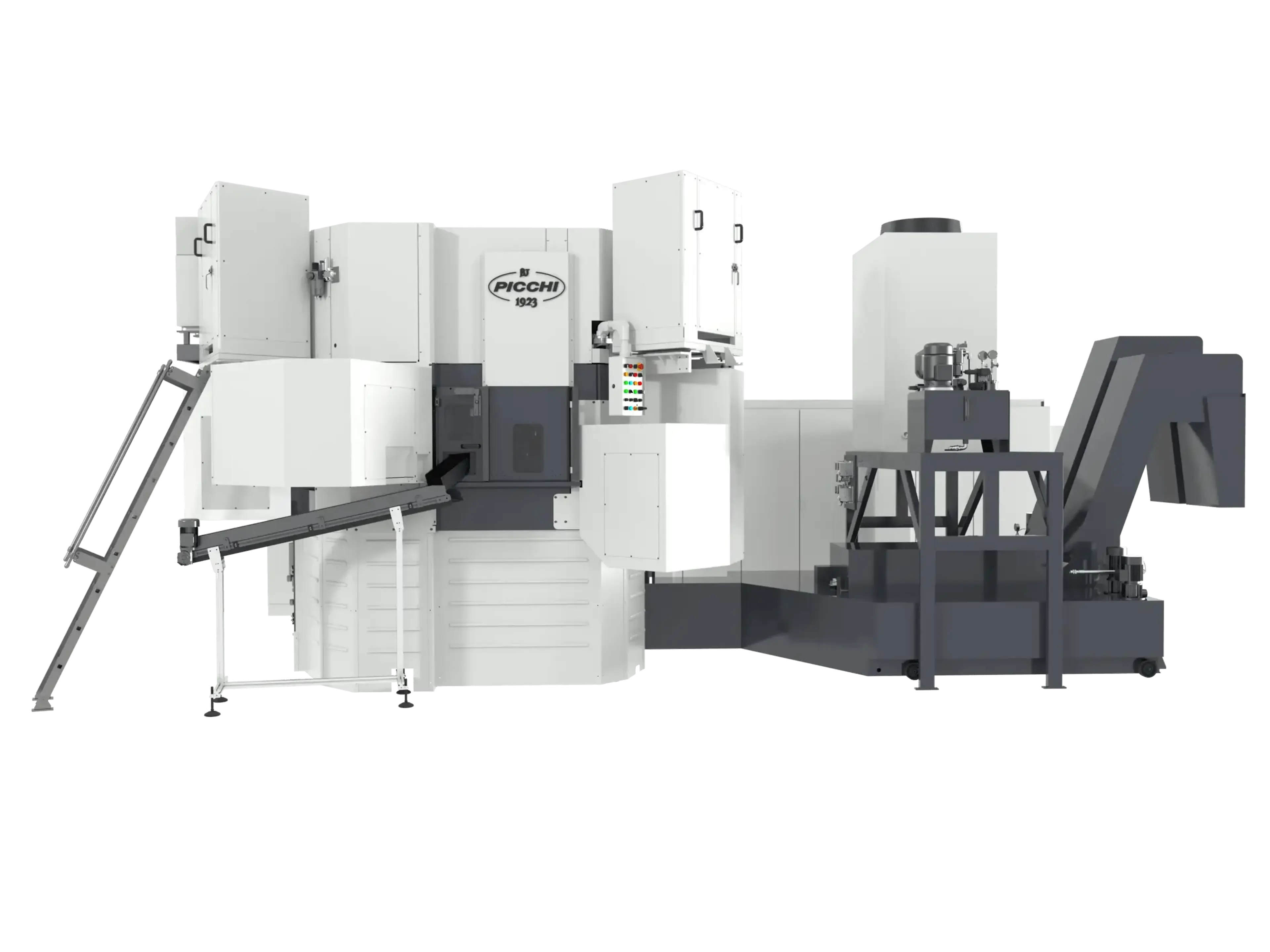

picchi-combyax-t16-u27-frontale-senza-robot

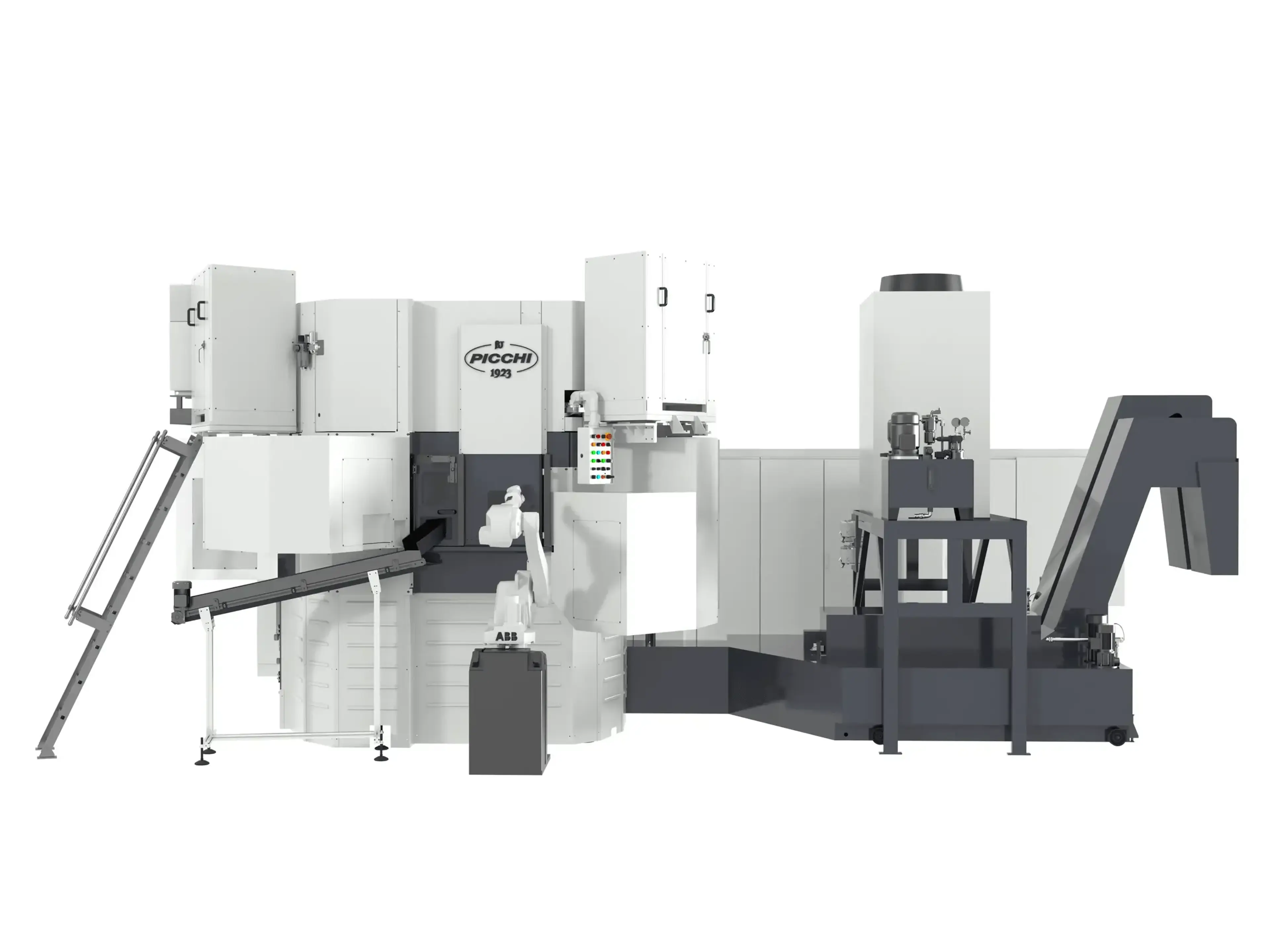

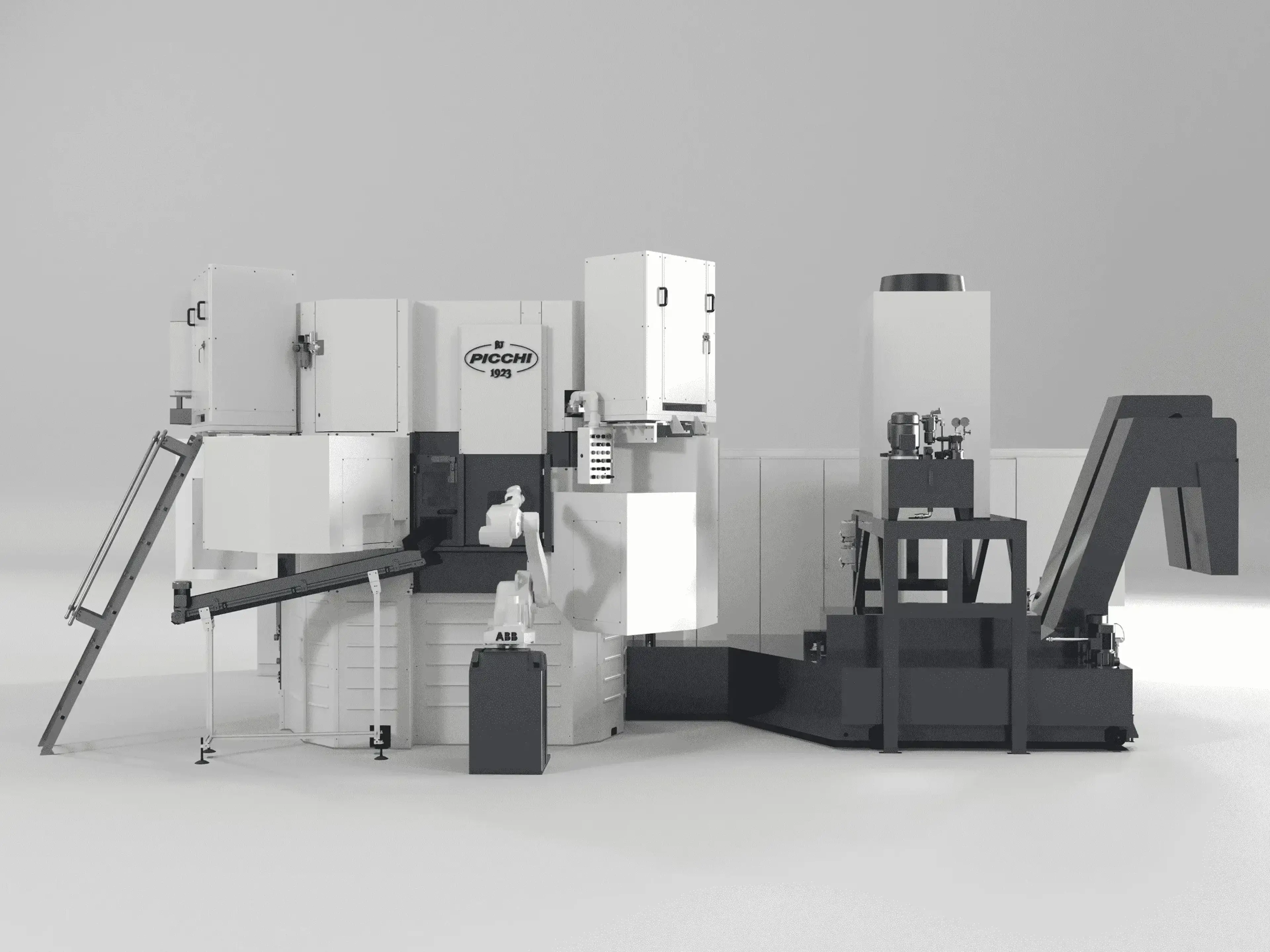

picchi-combyax-t16-u27-macchina-frontale

Some of the distinctive features of the machine

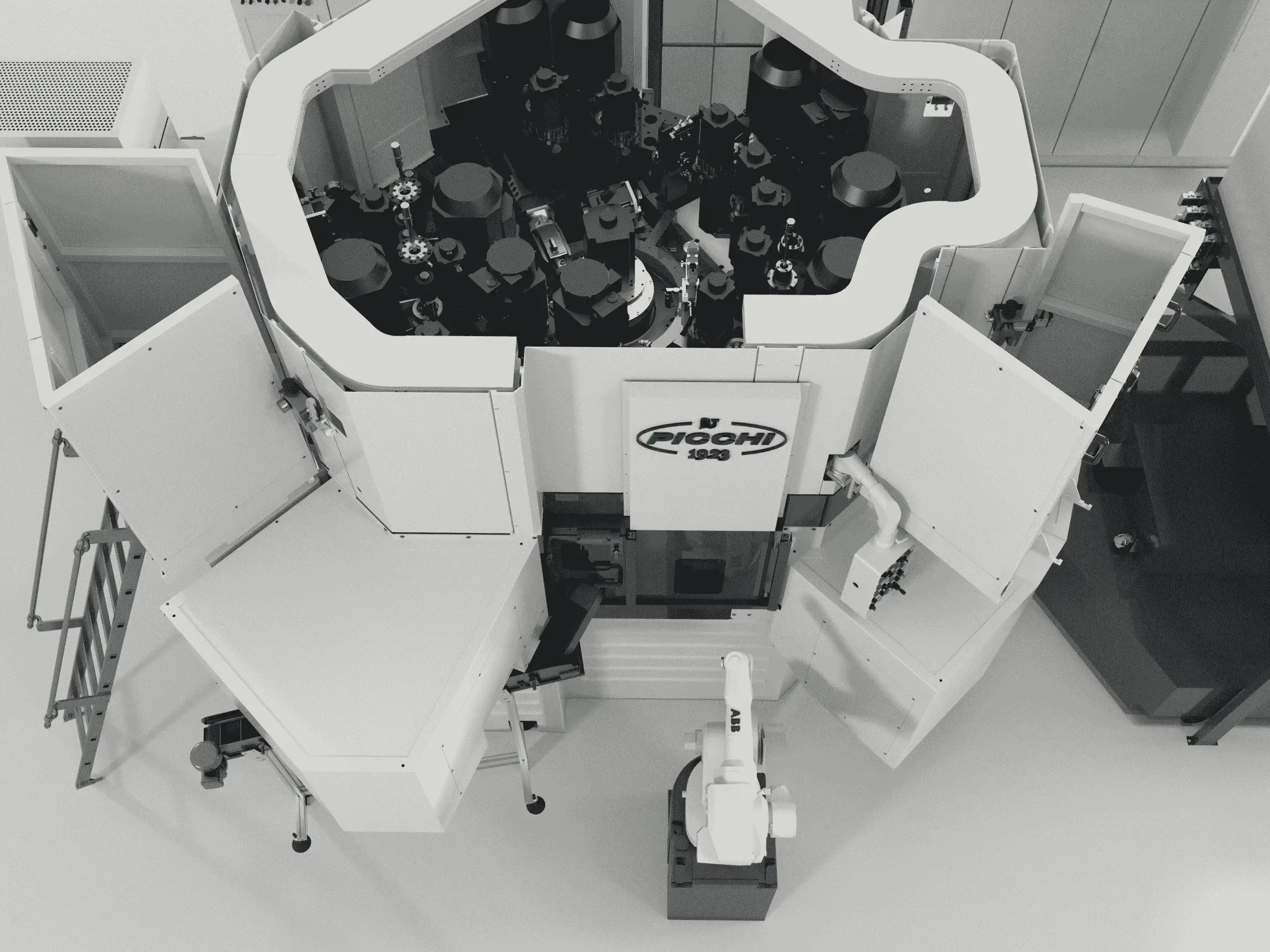

Integration of anthropomorphic robots inside the machine, which allow the repositioning of the parts to be worked between the different processing phases (for example OP10 and OP20).

Despite the presence of 27 spindles, which work simultaneously, the machine is extremely compact.

The machine body has an external diameter of less than 2.4 meters which ensures:

Maximum efficiency in cycle time;
Good thermal stability;
Easy access during the setup phase.

Technical features

Download the technical datasheet

N. 16 stations;
Self-centering vices suitable for workpiece clamping in double position (OP10-OP20);
Main rotary table with Hirth lock;
3-axis CNC machining centers;
2-axis CNC machining centers;
Mechanical and hydraulic recesses Picchi;
Spindle nose connection: HSK63C;
Multimaterial filtration system suitable for working also low-lead brass such as CW511L and ECOBRASS;
Differential thermoregulation and settable preheating cycle;
Lubricant-coolant passage through the tool at 15 bar;
Tool breakage control and management system;
Integrated anthropomorphic robot for piece exchange from OP10 to OP20;
The "HP" option guarantees maximum rigidity, precision and performance;
The "Long Life" option keeps performance unchanged over time as the sleeve wear is avoided; the units are equipped with a pressurization system to prevent machining chips or coolant from coming into contact with the bearings and the spindle;
Total controlled axes: 45;
Tele-service: remote maintenance, remote diagnosis and remote control systems;
Preparation according to the requirements of Industry 4.0: interconnection to factory IT systems, monitoring of working conditions and process parameters, adaptive control to process drifts, etc.
