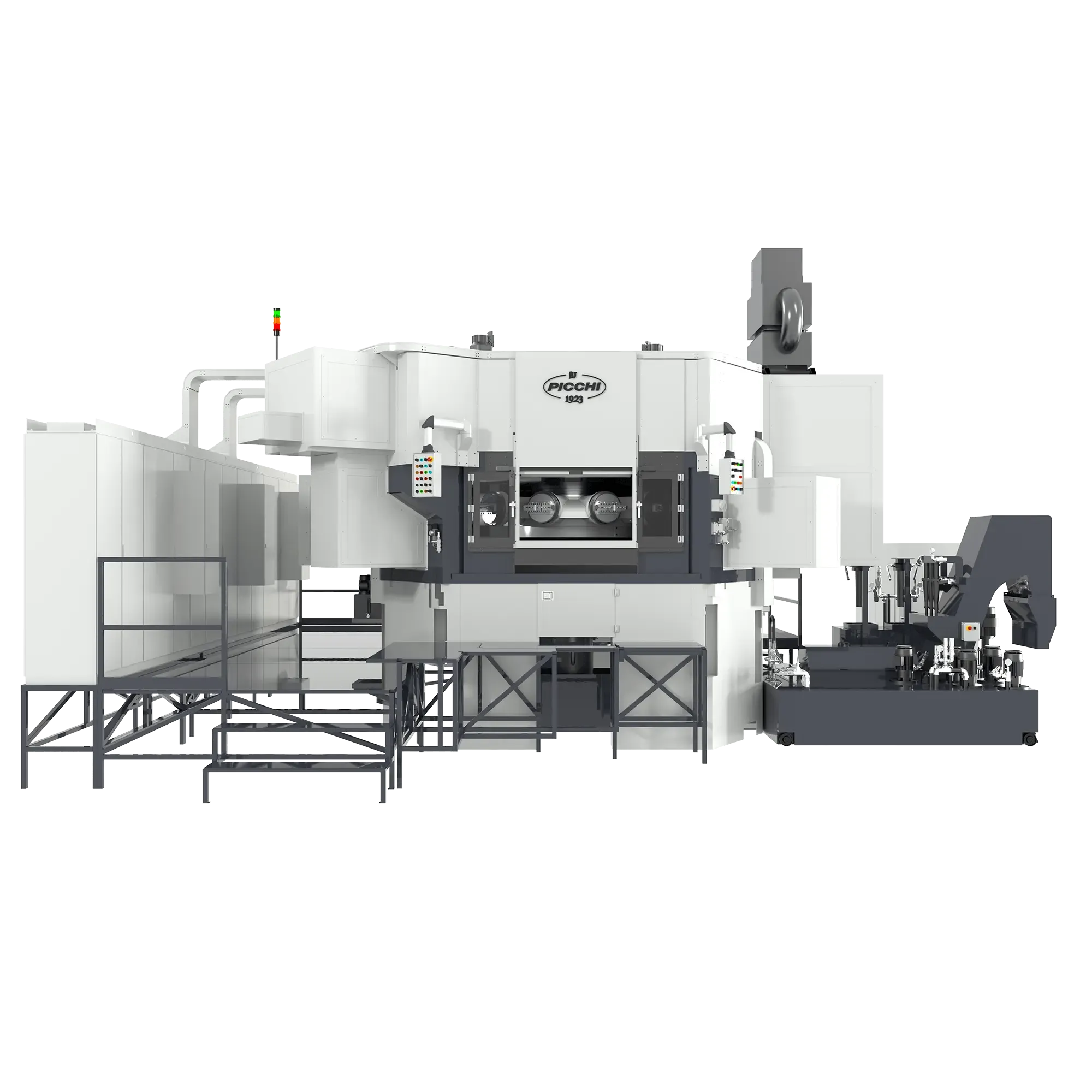

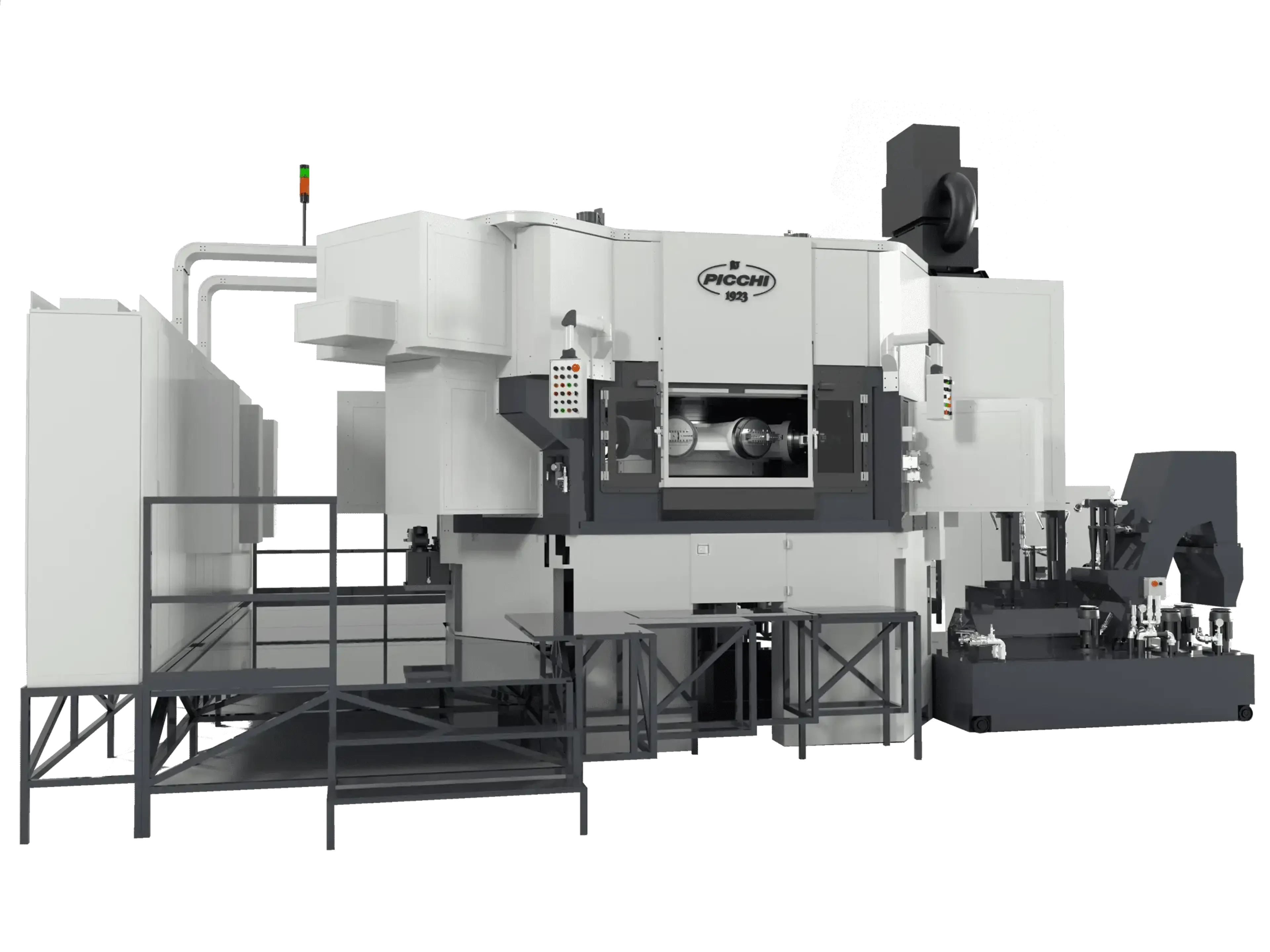

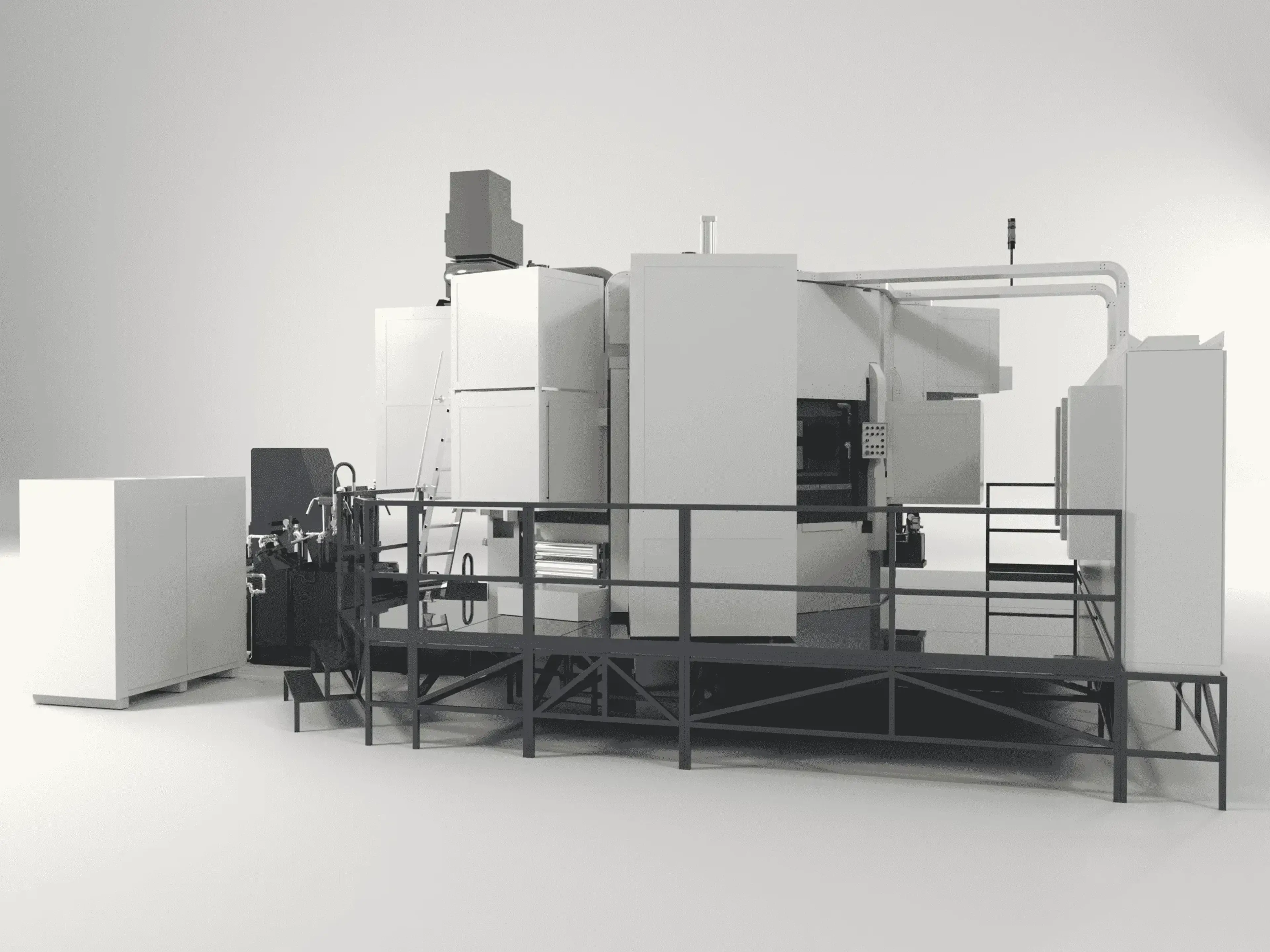

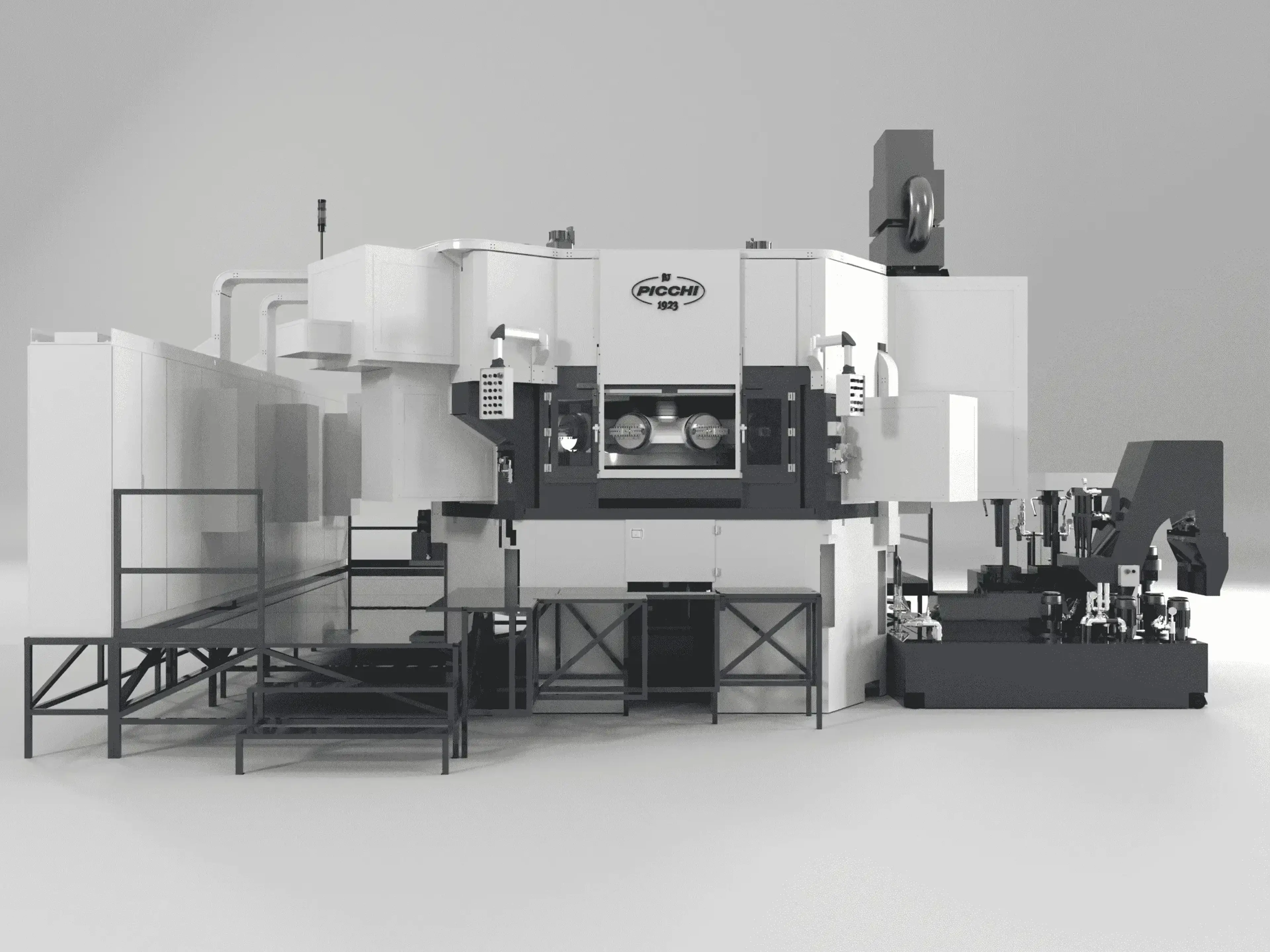

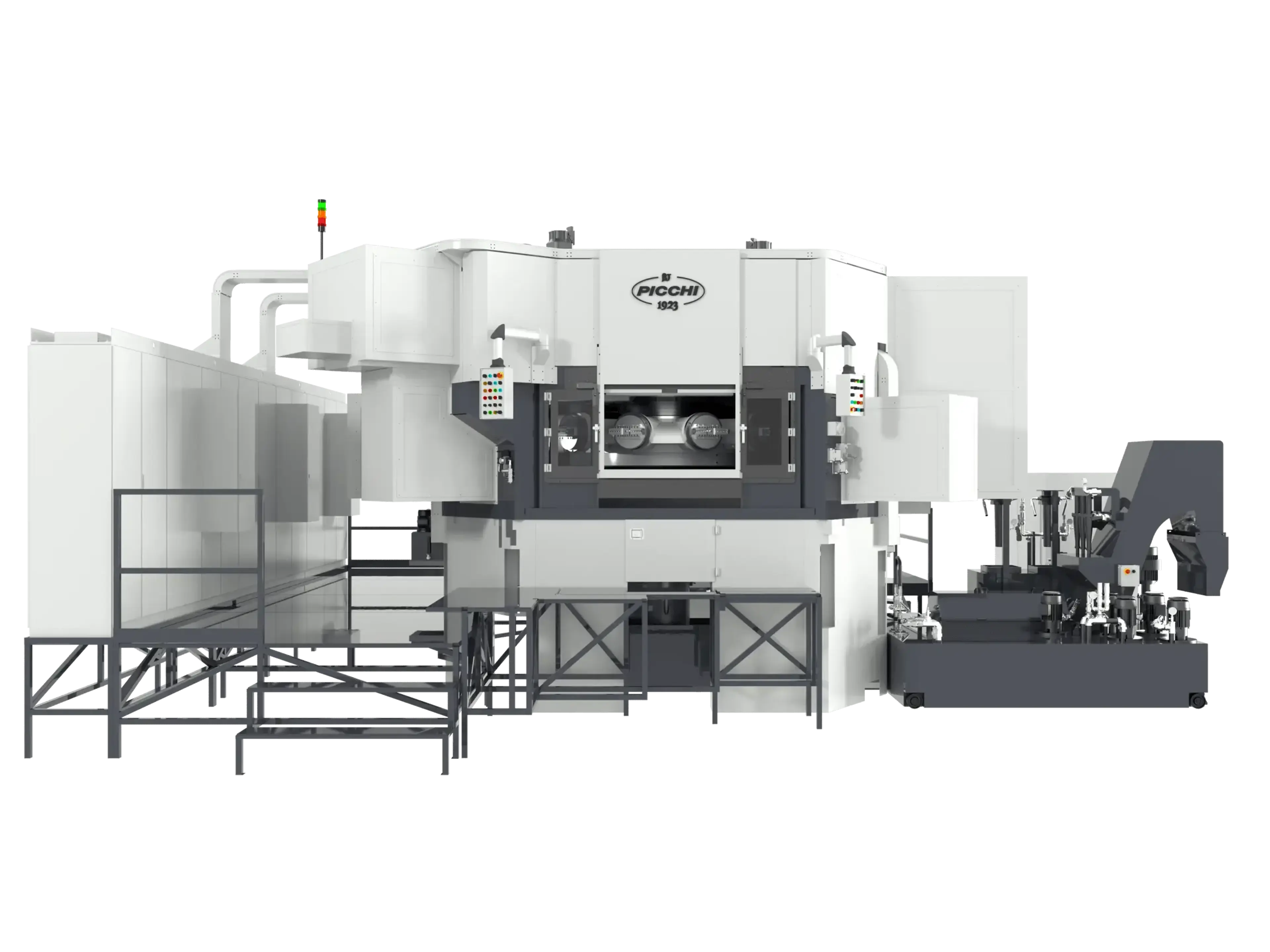

The machinery is projected for machining of complex pieces which need to be worked in only one phase and which need also 5-axes machining.

Work cube: 250x250x200 mm, the cube can be worked on 5 faces, in any direction.

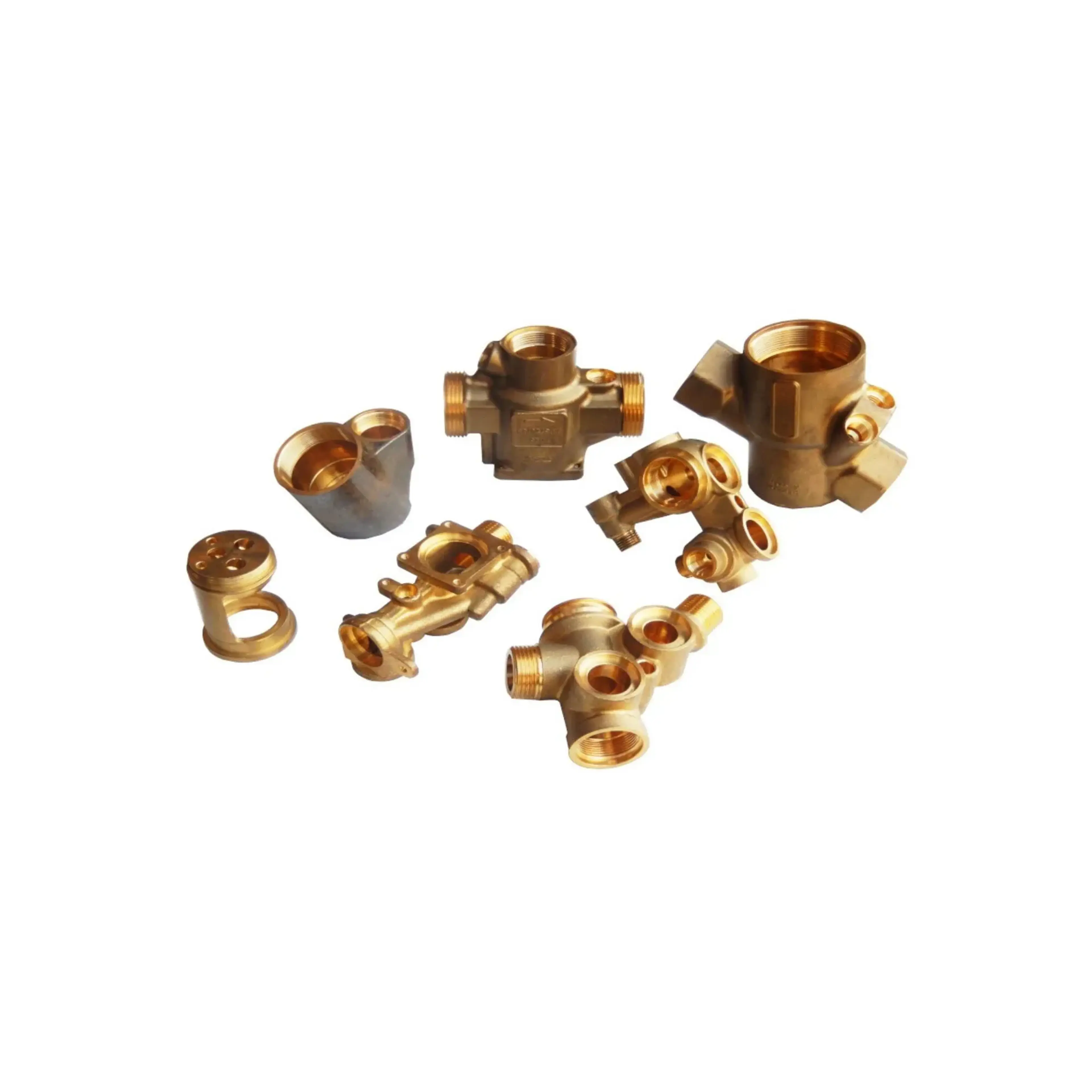

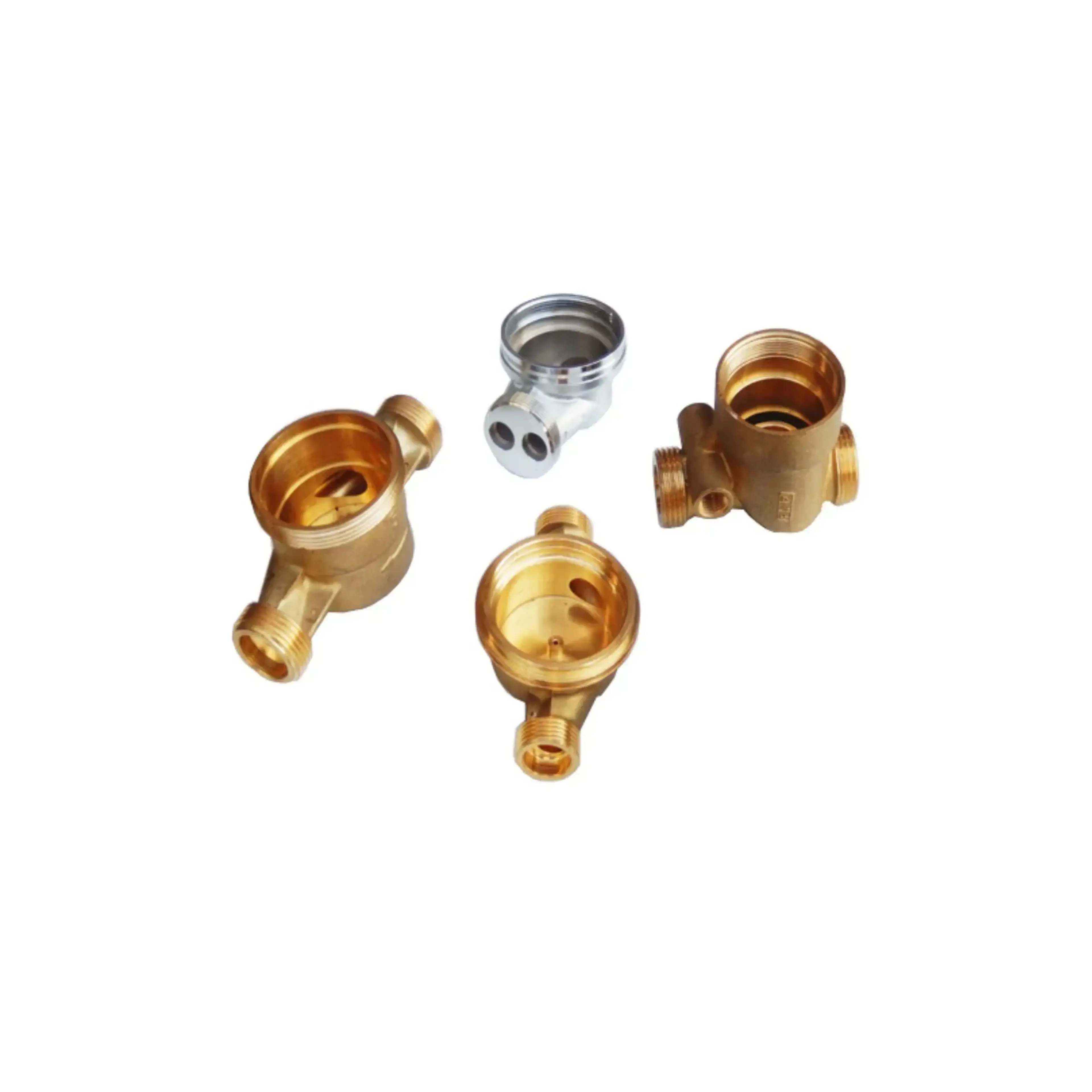

The flexibility and the versatility of the machinery make it usable in different sectors such as: automotive, hydrosanitary, thermotechnic, oil-hydraulics etc.

• N. 10 stations;

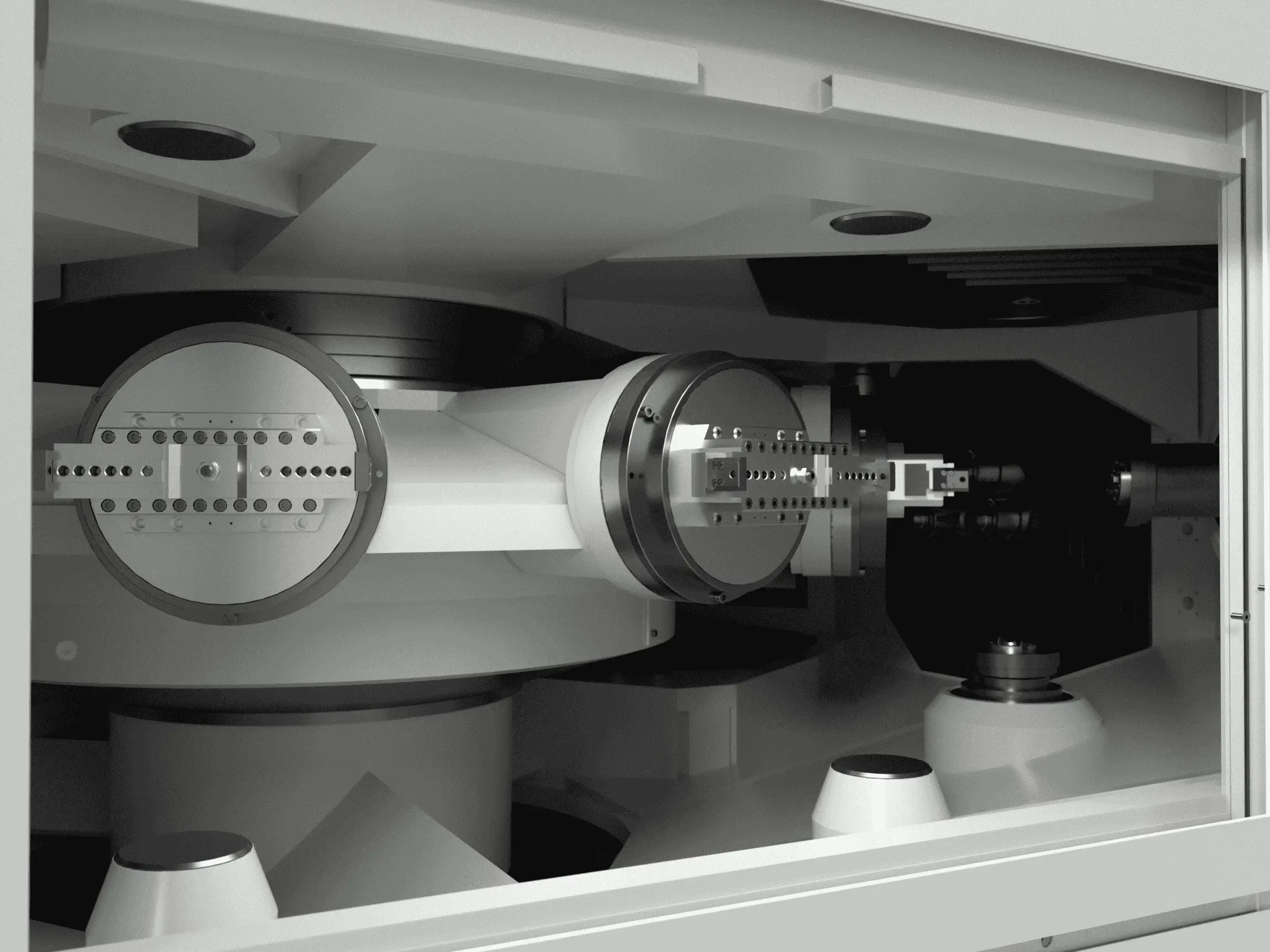

• Rotary vices;
• N. spindles: 32;
• Work cube: 250x250x200 mm;
• Power of spindles: 9kW (S1) 14kW (S6);
• N. 3-axes machining centers: 2;
• N. 4-axes machining centers: 6;
• N. 5 axes machining centers: 2;
• Installed power: 550 kW;
• N. 8 multi-spindles machining centers, 3 spindles version;
• N. 2 electronic tilt carriages;
• N. controlled axes: 72;
• Coolant through the tools at 18 bar;
• Chip conveyor dimensioned for the disposal of 800kg/h of turning;
• The main rotary table: driven by torque motor; positioning time 1,2;
• Tele-Service: systems of remote maintenance, tele diagnosis and remote control systems;
• Industry 4.0: predisposition for the interconnection to the IT systems, monitoring of the work conditions and of the process parameters, adaptive control to the drifts of the process, etc.
