Among the standard Picchi modules are installed:

• 9 machining centers with 3 controlled axes;
• 3 work directions;
• Possibility to use until 36 tools and to work different pieces in the same production cycle;
• Spindle motor for rigid thread;
• 37 axes controlled by CNC;
• Tele-service: systems of remote maintenance, tele diagnosis and remote control systems;
• Industry 4.0: predisposition for the interconnection to the IT systems, monitoring of the work conditions and of the process parameters, adaptive control to the drifts of the process, etc.

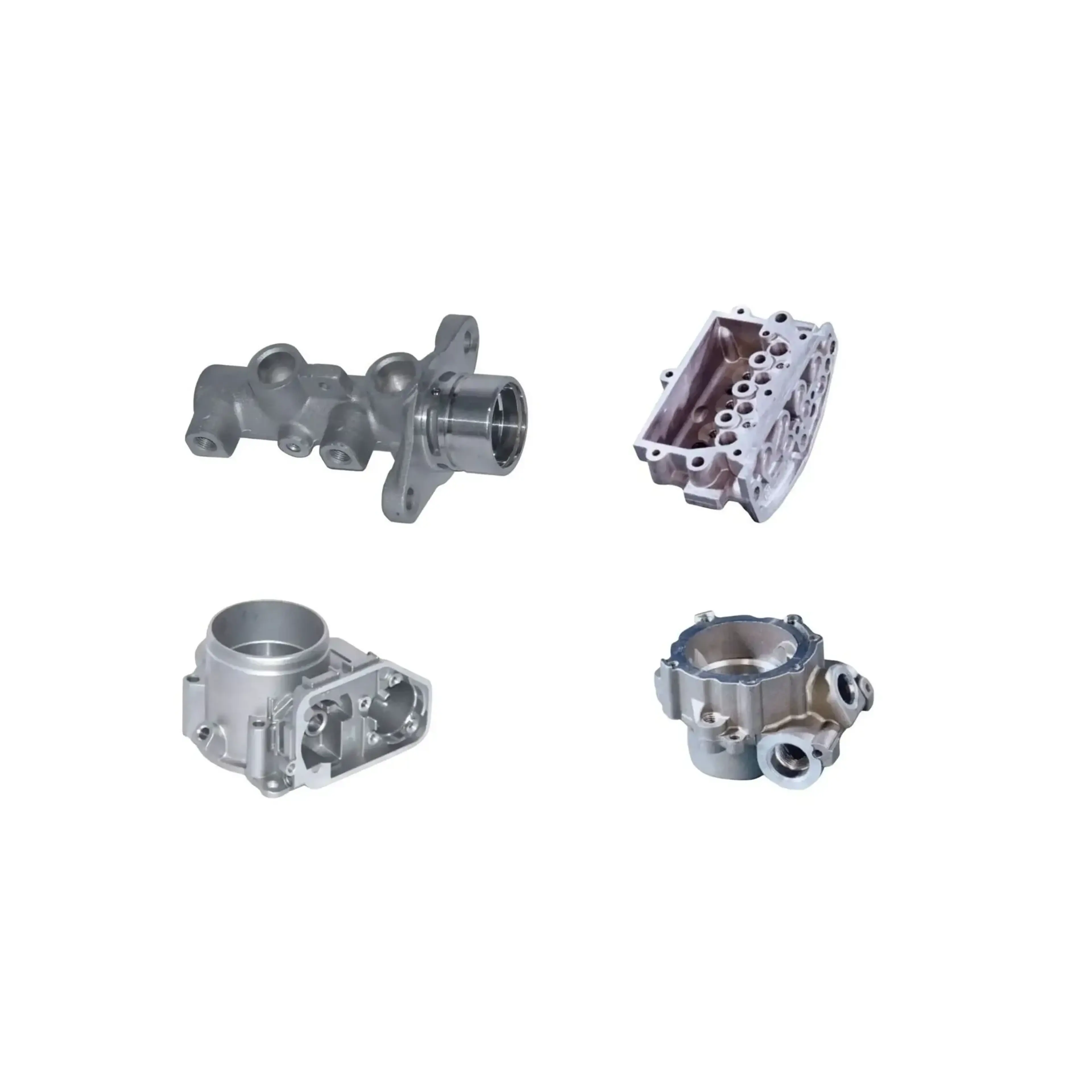

The flexibility of the machine finds application in different sectors for mechanical components, such as: automotive, oil-hydraulics, etc.

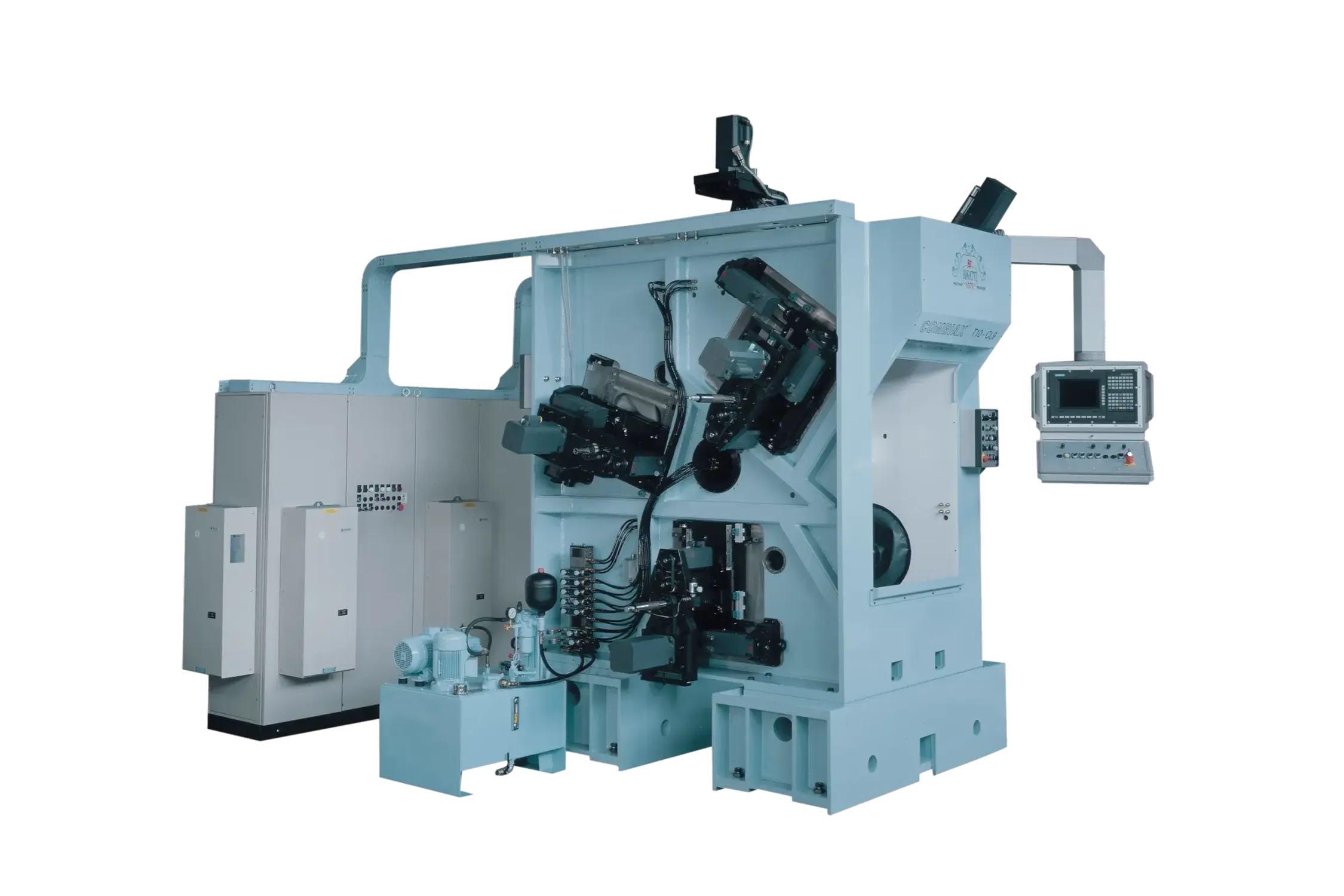

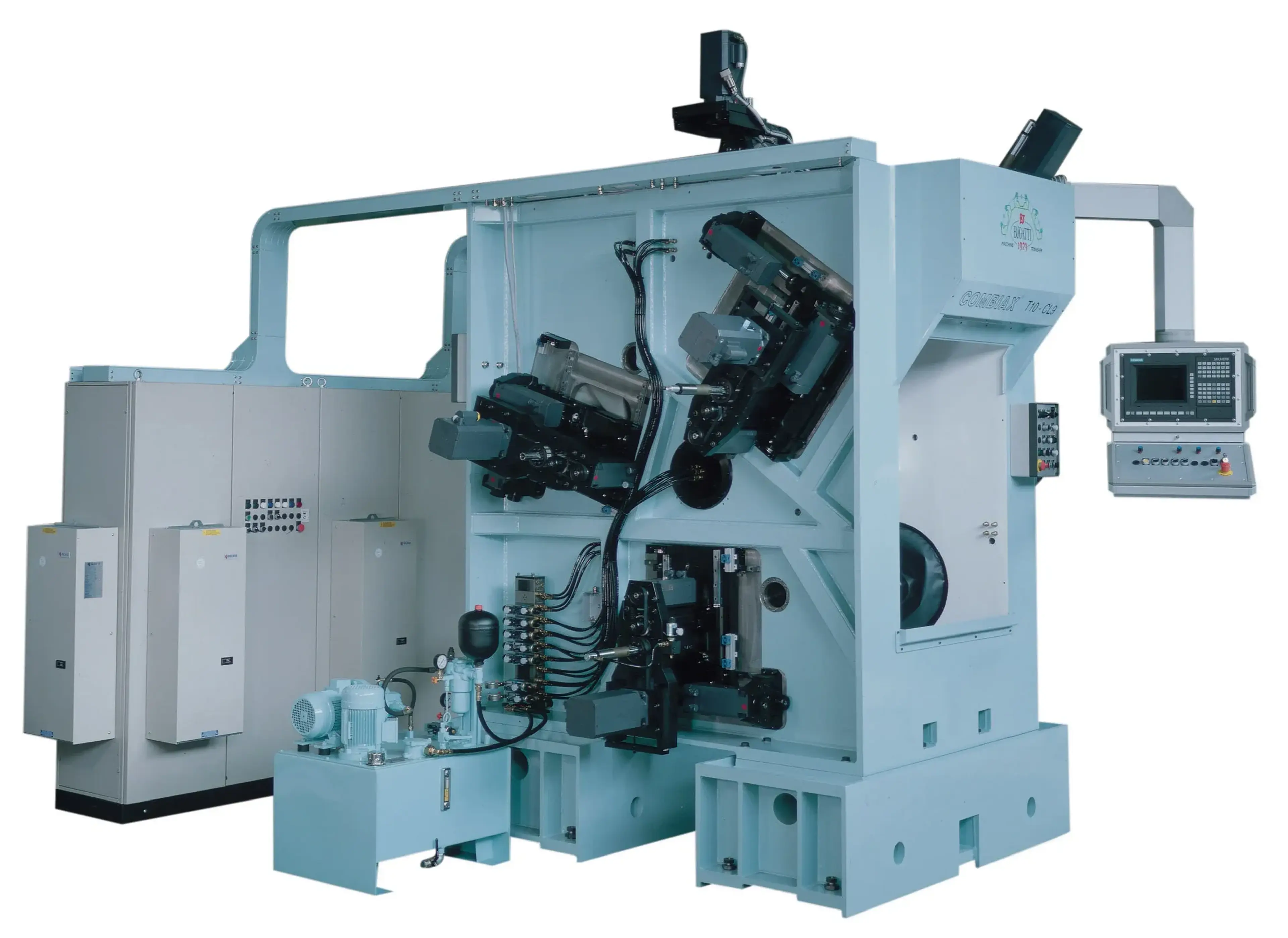

A high-performance flexible transfer machine designed for the precision machining of aluminum water pumps, equipped with 10 stations and 12 machining units, including 9 CNC machining centers with turret heads:

• 9 machining centers with 3 controlled axes;
• Main rotary table with Hirth ring locking system;
• Fixed-clamp vises;
• Turret heads with 4 spindles;
• Motor power: 7 kW (S1) / 9 kW (S6);
• Installed power: 170 kW;
• Total number of controlled axes: 37;
• Coolant supply through the tool at 18 bar;
• Tele-service: Remote maintenance, diagnostics, and control systems;
• Industry 4.0 readiness: Interconnection with factory IT systems, real-time monitoring of operating conditions and process parameters, adaptive process control, etc.
